Radio – fault diagnosis
- Make
- Land Rover
- Model
- Range Rover P38 Electrical Troubleshooting Manual
- Year
- 1997–1999
- Section
- Fault diagnosis › Radio – fault diagnosis
RadioRadio – fault diagnosis

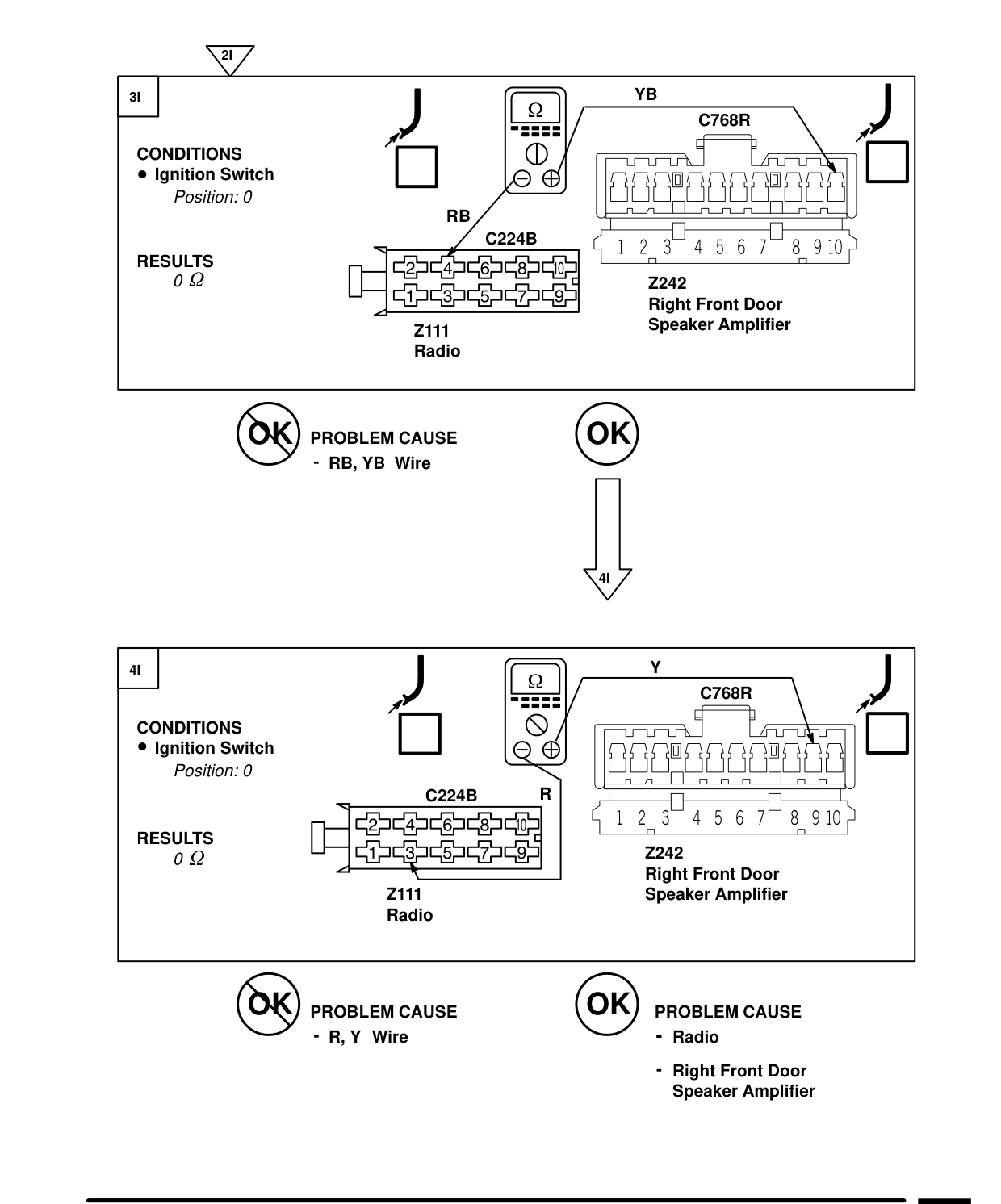

RADIO – FAULT DIAGNOSIS
2I
3I
CONDITIONS Ignition Switch
Position: 0
RESULTS
0
OK PROBLEM CAUSE - Wire RB, YB
4I
CONDITIONS Ignition Switch
Position: 0
RESULTS
0
Z111 Radio
OK PROBLEM CAUSE - R, Y Wire
YB
C768R
RB C224B
Z242 Right Front Door Speaker Amplifier Z111 Radio
OK
4I
Y
C768R
R C224B
Z242 Right Front Door Speaker Amplifier
OK PROBLEM CAUSE - Radio - Right Front Door Speaker Amplifier
