RADIO – FAULT DIAGNOSIS

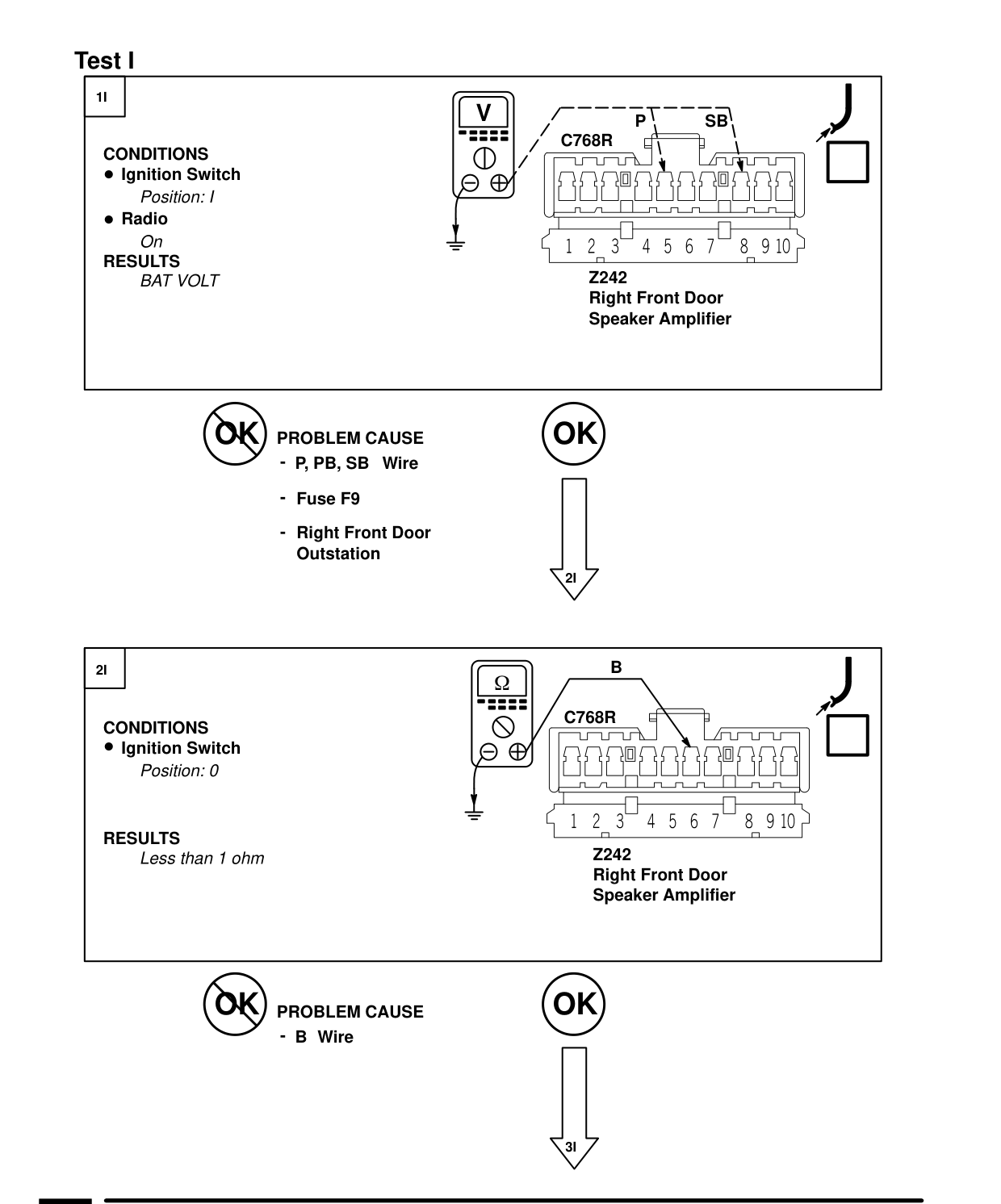

Test I 1I

CONDITIONS Ignition Switch

Position: I

Radio

On

RESULTS

BAT VOLT

OK PROBLEM CAUSE - P, PB, SB

- Fuse F9 - Right Front Door Outstation

2I

CONDITIONS Ignition Switch

Position: 0

RESULTS

Less than 1 ohm

OK PROBLEM CAUSE - B Wire

V P SB C768R

Z242 Right Front Door Speaker Amplifier

OK Wire

2I

B

C768R

Z242 Right Front Door Speaker Amplifier

OK

3I

15 Electrical
