SC 300 L6-3.0L (2JZ-GE) (1992)
/Page-198001.png)
Drive Belt: Specifications

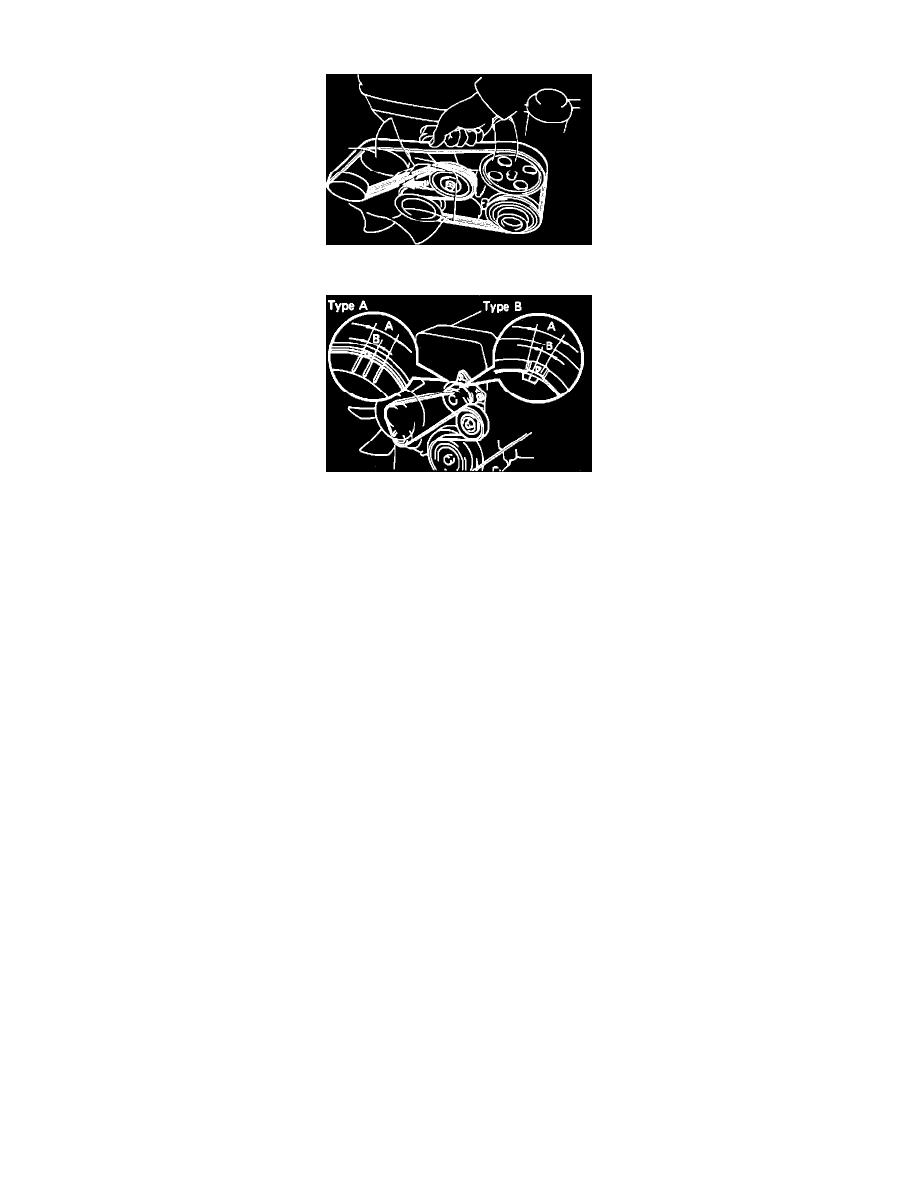

Fig. 41 Serpentine Drive Belt Routing
Fig. 42 Serpentine Drive Belt Tensioner
Refer to Fig. 41 for belt routing diagram. Ensure proper belt tension by checking that belt rides within the A area of the belt tensioner, Fig. 42. If belt
does fall within the A area, replace belt. The new belt should ride within the B area.
