Flex Plate: Specifications
- Make
- Mazda
- Model
- 6
- Engine
- L4-2.3L
- Year
- 2006
- Section
- Flex Plate › Specifications
Flex Plate: Specifications
AW6A-EL

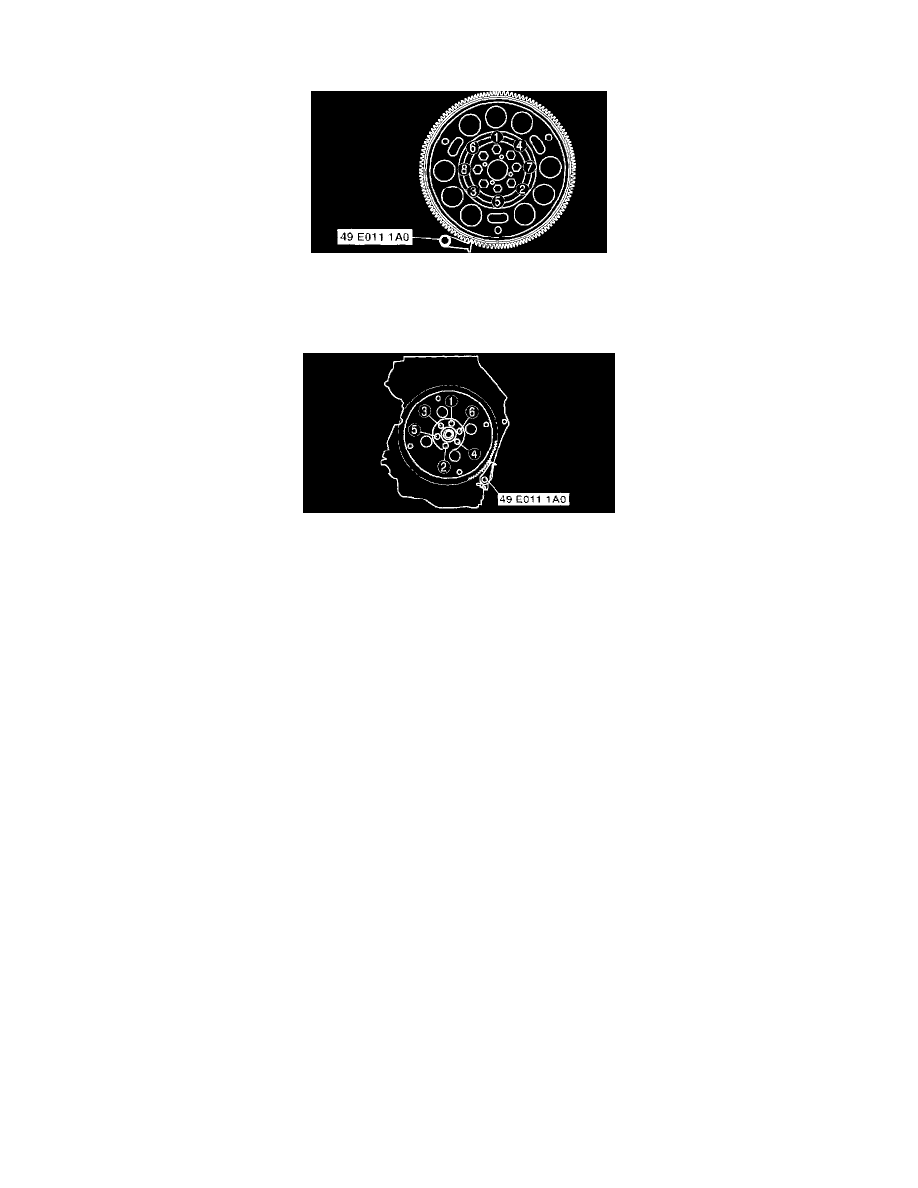

Tighten the new drive plate mounting bolts in two or three steps in the order shown
Tightening torque ............................................................................................................................................. 73 - 87 Nm (7.4 - 8.9 kgf-m, 54 - 64 ft. lbs.)
FS5A-EL
Tighten the new drive plate mounting bolts in two or three steps in the order shown
Tightening torque ............................................................................................................................... 108 - 116 Nm (11.0 - 11.8 kgf-m, 79.7 - 85.5 ft. lbs.)
