CX-7 L4-2.3L Turbo (2007)
Grille: Service and Repair

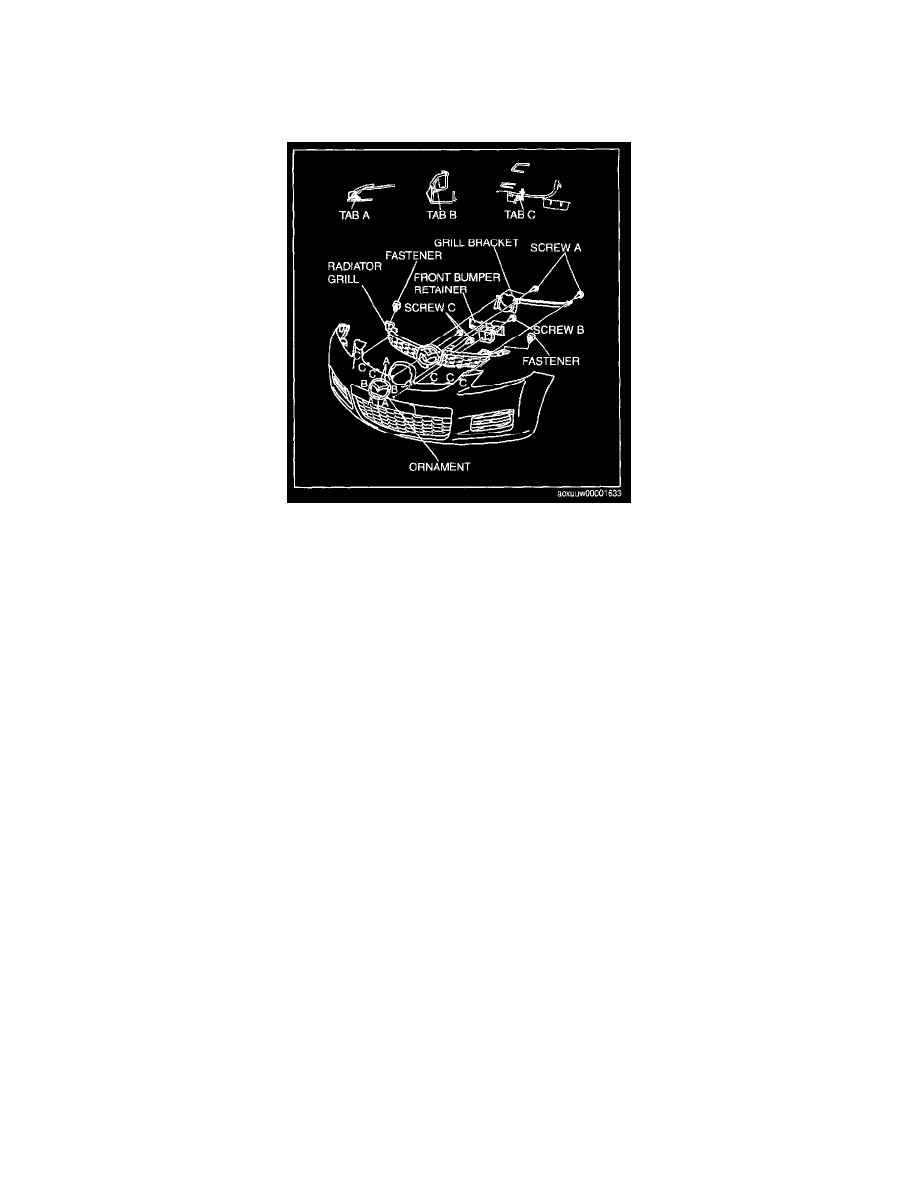

RADIATOR GRILLE REMOVAL/INSTALLATION
1. Remove the front bumper.
2. Remove the inter cooler duct.
3. Remove the fasteners.
4. Remove the screws A.
5. Remove the grill bracket.
6. Remove the screws B
7. Remove the front bumper retainer.
8. Remove the tabs A and B.
9. Remove the ornament.
10. Remove the screws C.
11. Remove the tabs C
12. Remove the radiator grill.
13. Press tabs C in the direction of the arrow, pull the radiator grille inward, and remove it from the front bumper.
14. Install in the reverse order of removal.
