Knee Diverter: Service and Repair

Make

Mazda

Model

CX-7

Engine

L4-2.3L Turbo

Year

2007

Section

Knee Diverter › Service and Repair

Restraint SystemsService and Repair

Knee Diverter: Service and Repair

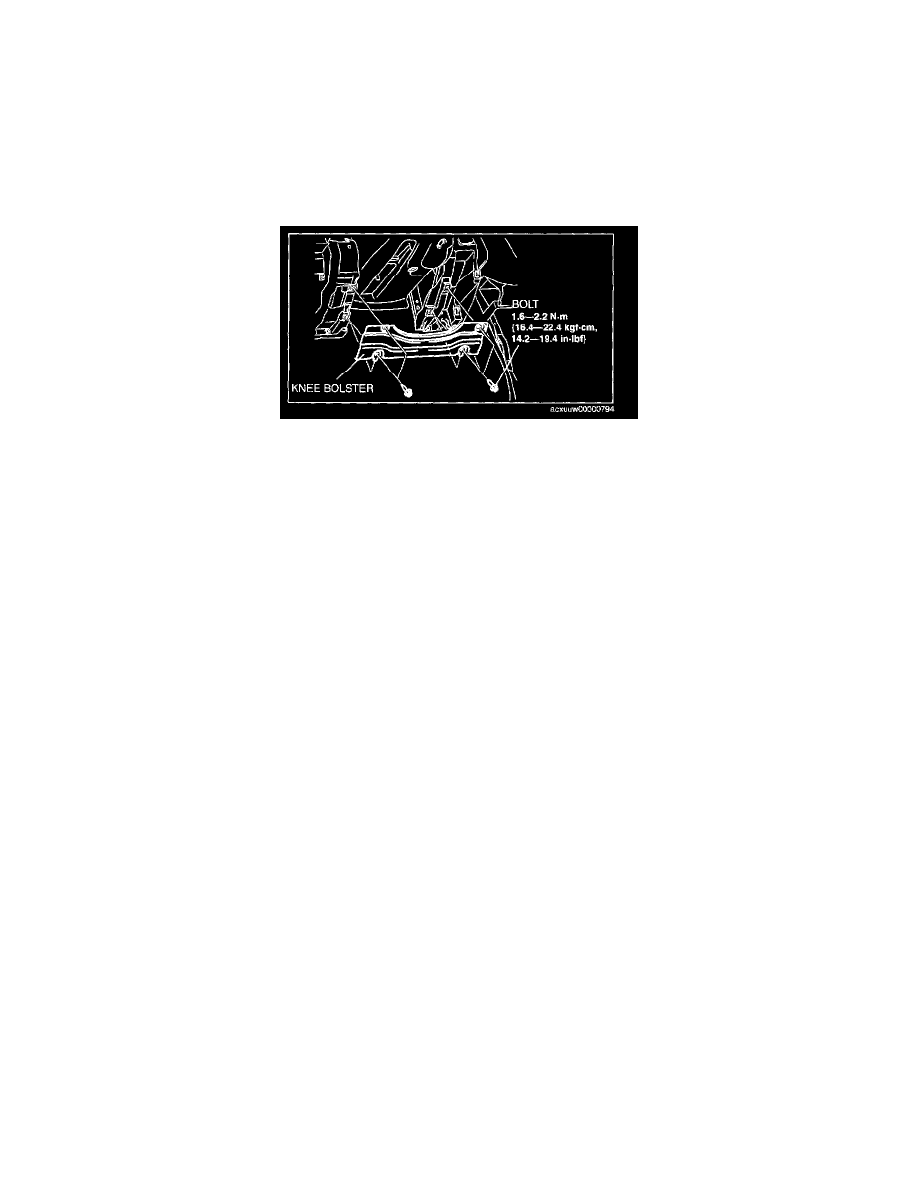

KNEE BOLSTER REMOVAL/INSTALLATION

1. Remove the following parts:

1. Console panel
2. Console
3. Front scuff plate inner (driver's side)
4. Front side trim (driver's side)
5. Hood release lever
6. Lower panel (driver's side)

2. Remove the bolts.
3. Remove the knee bolster.
4. Install in the reverse order of removal.
