Cruise Control: Testing and Inspection
Accessing Diagnostic Codes

Using Diagnostic Scan Tool

1. Connect special diagnostic tools as shown in Fig. 1 and 2, then follow diagnostic scan tool screen prompts and enter vehicle data as required.

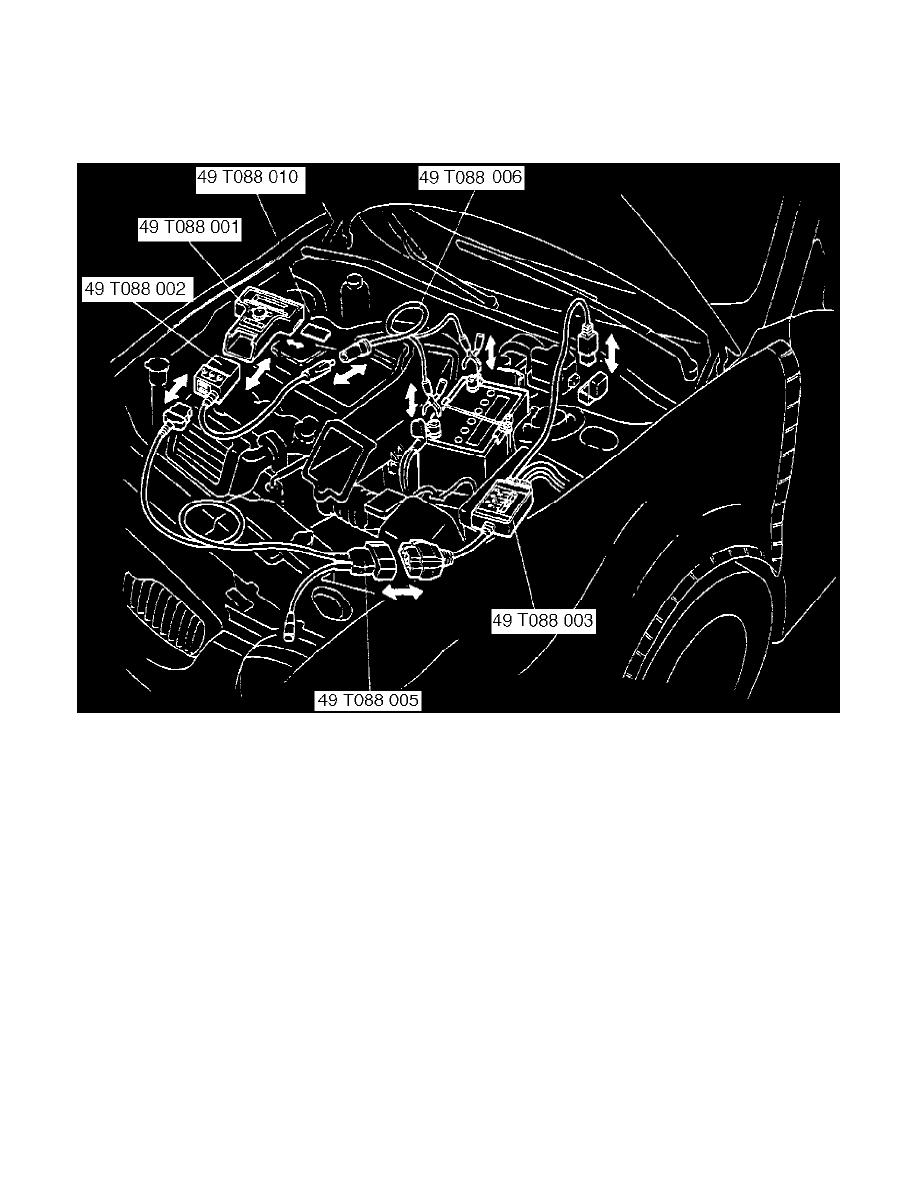

Fig. 1  Diagnostic Tool Connection
