Protege DX L4-2.0L DOHC (2002)

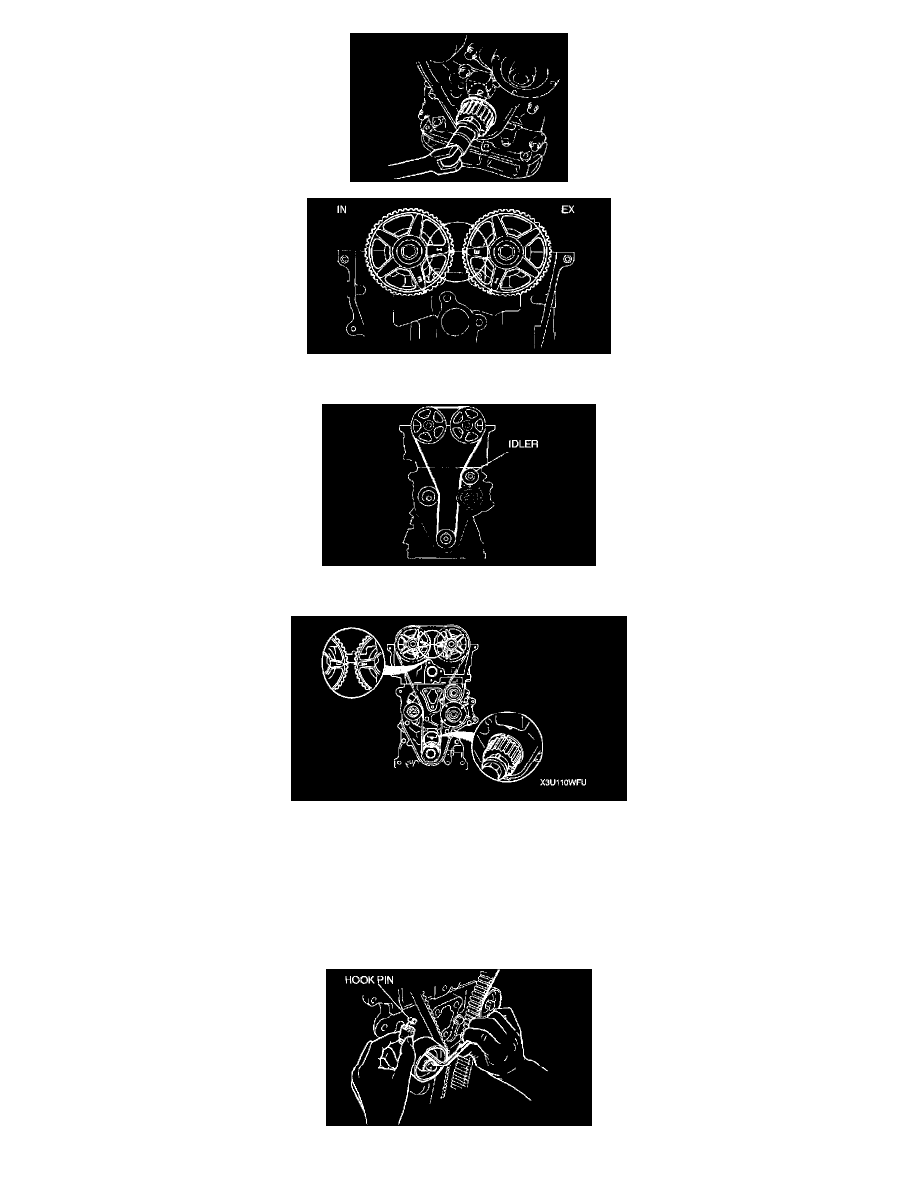

1. Verify that the timing belt pulley mark and camshaft pulley marks are aligned with the timing marks as shown.
2. Install the timing belt so that there is no looseness at the idler side.
3. Turn the crankshaft clockwise twice, and align the timing marks.
4. Verify that all timing marks are correctly aligned.
^
If not aligned, remove the timing belt and repeat from Step 1.
Caution:
^
Be sure not to apply tension other than that of the tensioner spring.
5. Turn the tensioner clockwise using an Allen wrench.
