CLK 55 AMG (208.374) V8-5.5L (113.984) (2001)

Page 1
background image

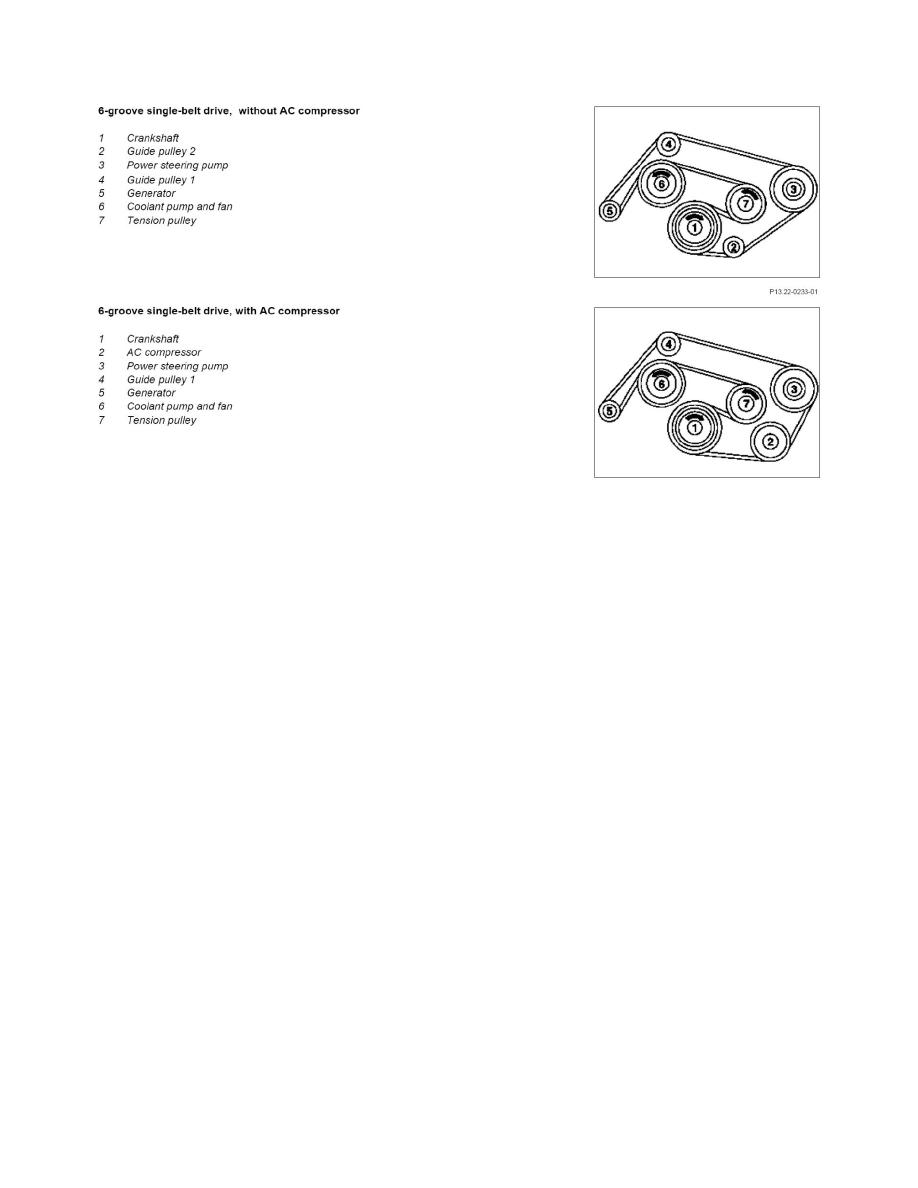

Drive Belt: Diagrams

Ar13.22-P-3902-02B Running Diagram of Poly V-Belt
