Restraint systems (Component location): Description and operation

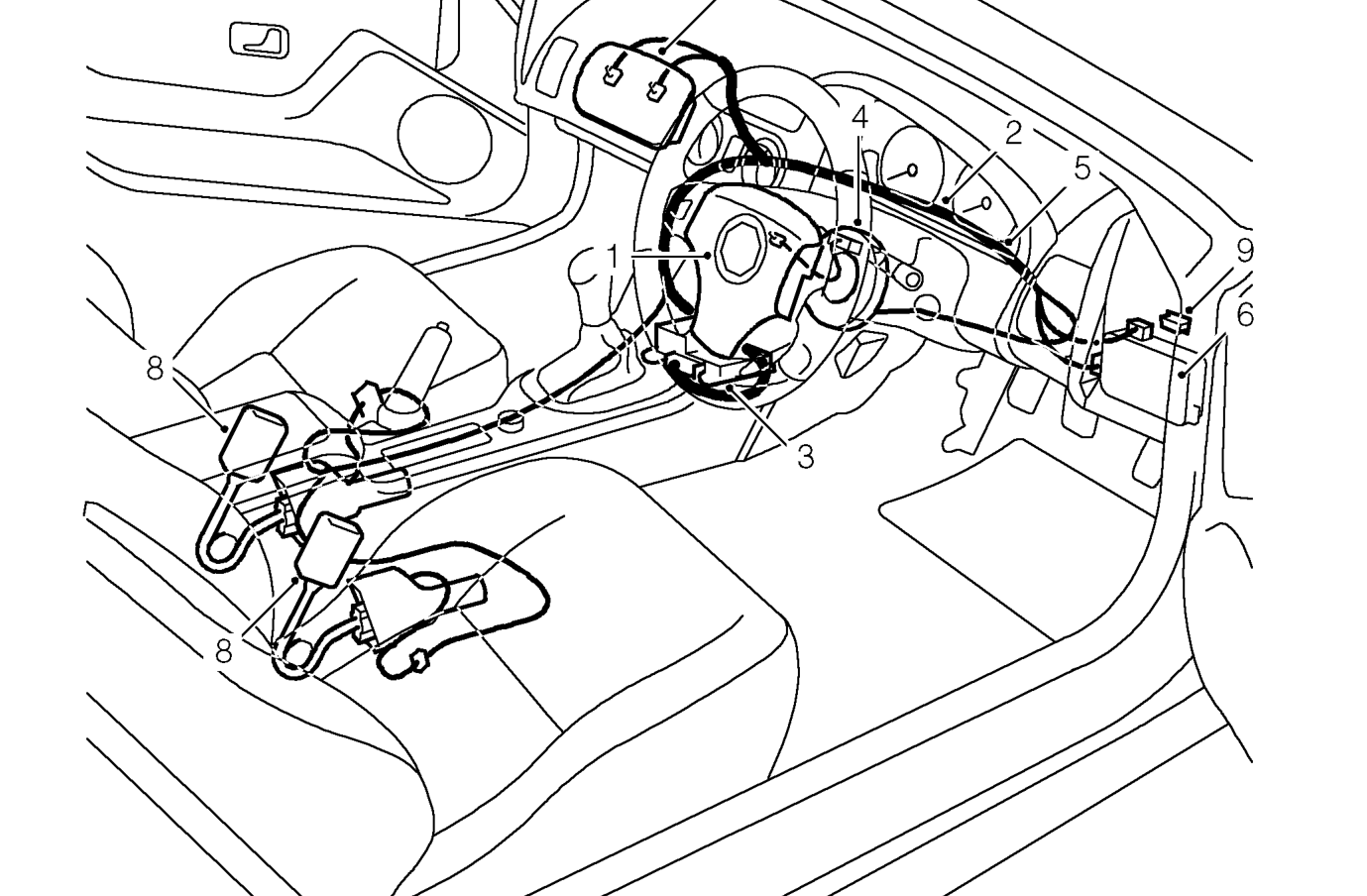

COMPONENT LOCATION

NOTE: LHD type is symmetrical to RHD type.

1. Driver’s airbag module *
2. SRS warning light
3. Diagnostic control unit *
4. Rotary coupler *
5. SRS harness (YELLOW) *
6. Fuse/relay box
7. Passenger’s airbag module (optional) *
8. Seat belt pre-tensioners *
9. Diagnostic socket

* Components to be renewed following system deployment.

Following deployment of the Supplementary Restraint System (SRS), under any circumstances, the above components marked with an asterisk must be renewed.

Impacts which do not deploy airbags, check for structural damage in the area of impact, paying particular attention to bumper armatures, longitudinals, crash cans and bracketry.
