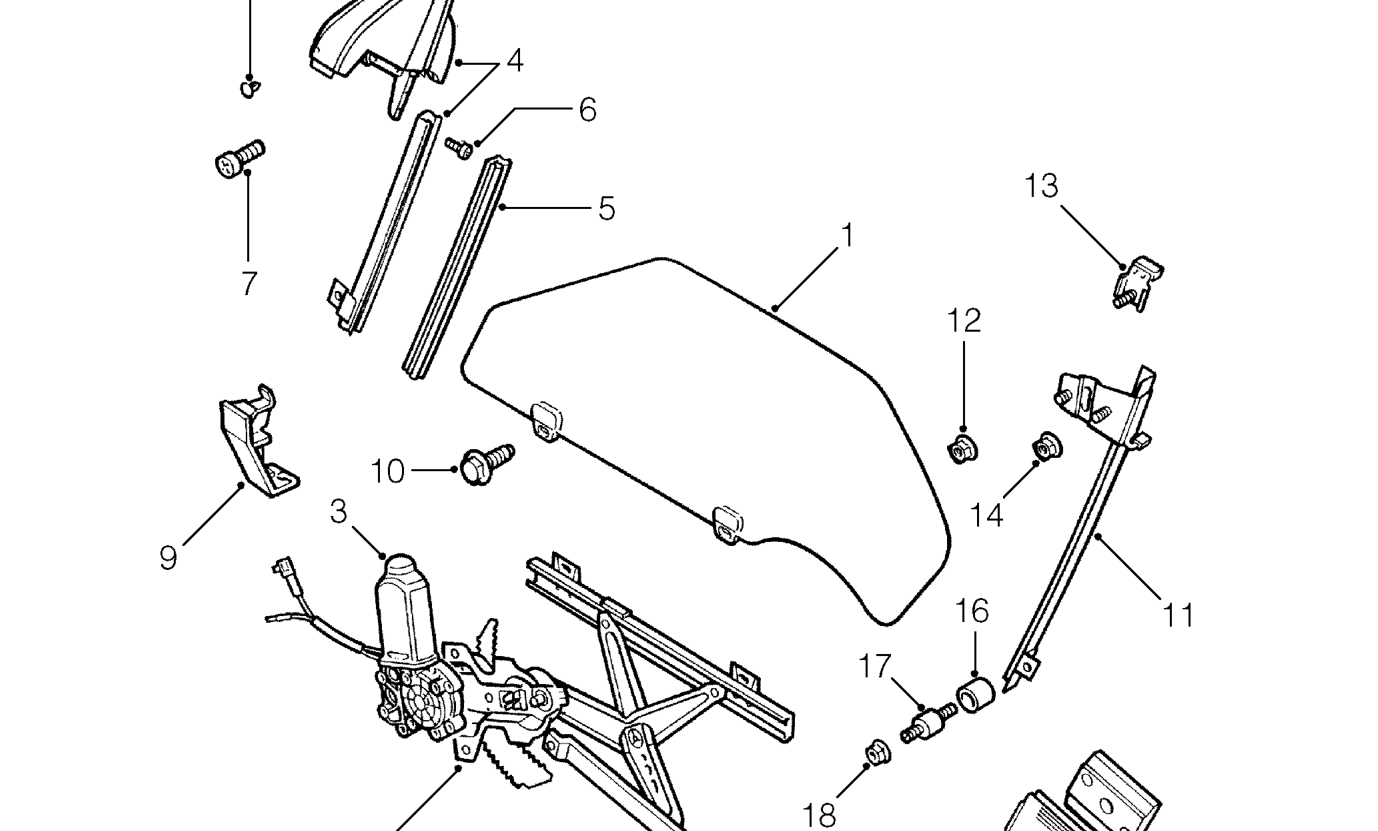

Electric window lift components

ELECTRIC WINDOW LIFT COMPONENTS

1. Door glass
2. Regulator
3. Motor
4. Cheater assembly
5. Sash
6. Screw - sash to cheater, 2 off
7. Screw - cheater, 2 off
8. Fastner - cheater
9. Glass stop,
10. Bolt - glass to regulator, 2 off
11. Sash
12. Nut - upper rail bracket, 2 off
13. Stud bracket - glass retention
14. Nut - glass retention
15. Glass retention assembly
16. Sleeve - sash adjuster, 2 off
17. Screw - sash adjuster, 2 off
18. Nut - sash adjuster, 2 off
19. Bolt - glass retention
20. Bolt - regulator, 2 off
