PRIVATE LOCK

Service repair no - 76.37.39

Remove

  1. Remove trim casing. See this section.
  2. Carefully peel back plastic sheet to allow access to inner door.

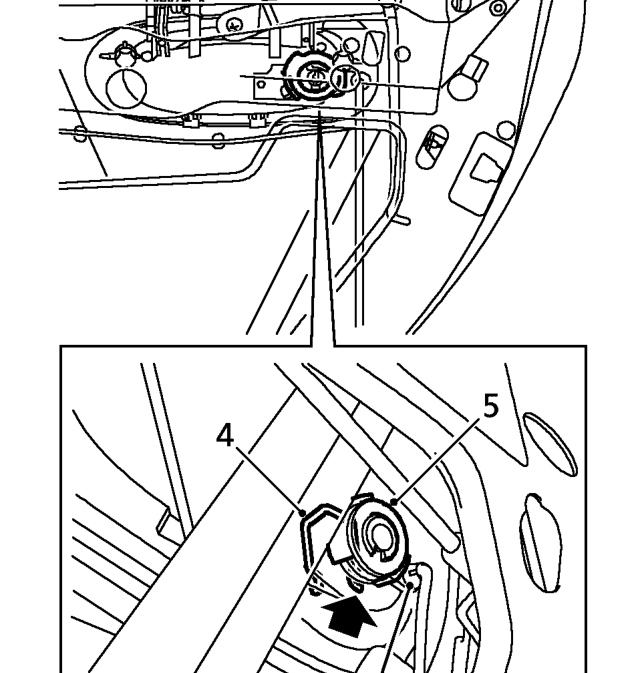

Private lock – Carefully peel back plastic sheet to allow access to inner door.
  1. Unclip link rod from lock.
  2. Release spring clip from lock.
  3. Remove private lock.

Refit

  1. Fit lock to handle and secure with spring clip.
  2. Engage link rod to lock.
  3. Position plastic sheet and press into place.
  4. Fit trim casing. See this section.

OUTSIDE HANDLE

Service repair no - 76.58.07

Remove

  1. Remove trim casing. See this section.
  2. Switch the ignition ON and fully lower door glass.
  3. Switch ignition OFF.
  4. Carefully peel back corner of plastic sheet to allow access to door latch.

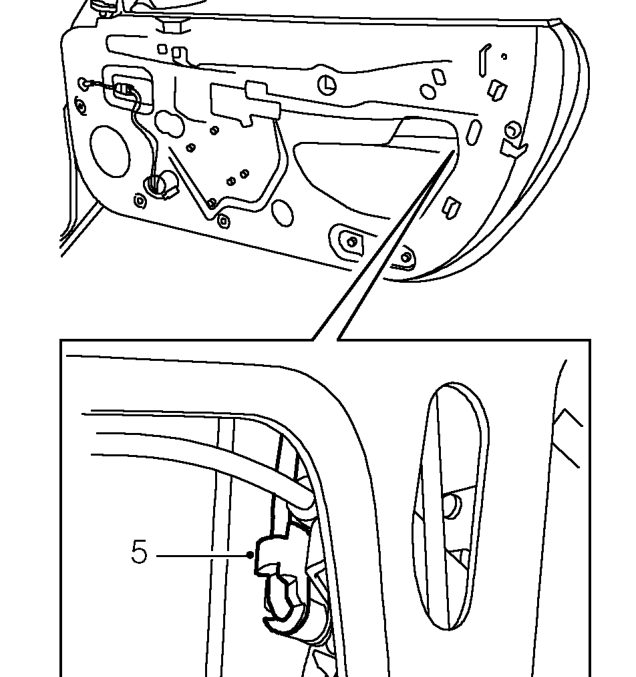

Outside handle – Carefully peel back corner of plastic sheet to allow access to door latch.
  1. Release clip securing door handle link rod to latch assembly and position aside.
  2. Driver’s side: release lock link rod from lock.
