DOOR MIRROR

Service repair no - 76.10.52

Remove

  1. Remove trim casing. See this section.

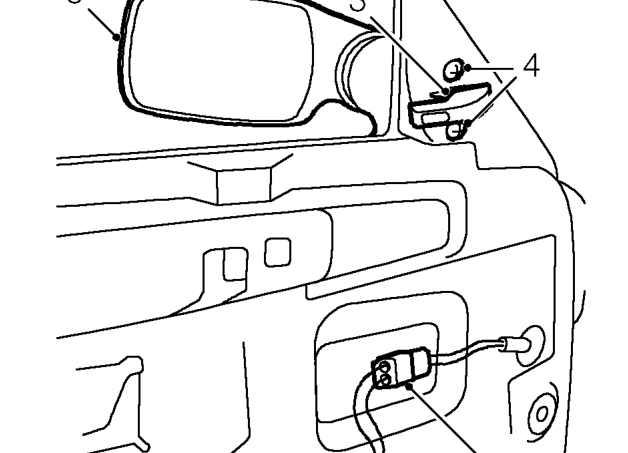

Door mirror – Remove trim casing. See this section.
  1. Disconnect heated door mirror glass multiplug.
  2. Remove door mirror adjustment lever.
  3. Remove 2 screws securing door mirror to cheater panel.
  4. Release mirror harness from cheater and remove mirror.

Refit

  1. Feed mirror harness through cheater, align mirror and tighten screws.
  2. Fit door mirror adjustment lever.
  3. Connect door mirror harness multiplug to vehicle harness.
  4. Fit trim casing. See this section.

GLASS

Service repair no - 76.31.01

Remove

  1. Remove trim casing. See this section.

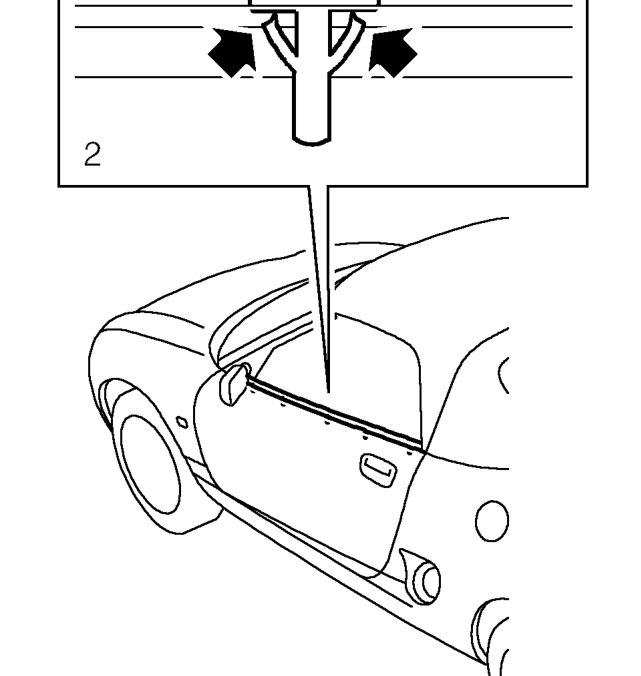

Glass – Remove trim casing. See this section.
  1. Release 5 clips securing outer waist seal to door and remove seal.
  2. Peel back plastic sheet to allow access to inner door.
  3. Switch ignition ON and lower window to allow access to bolts.
  4. Switch ignition OFF.
