Electric window operation

ELECTRIC WINDOW OPERATION

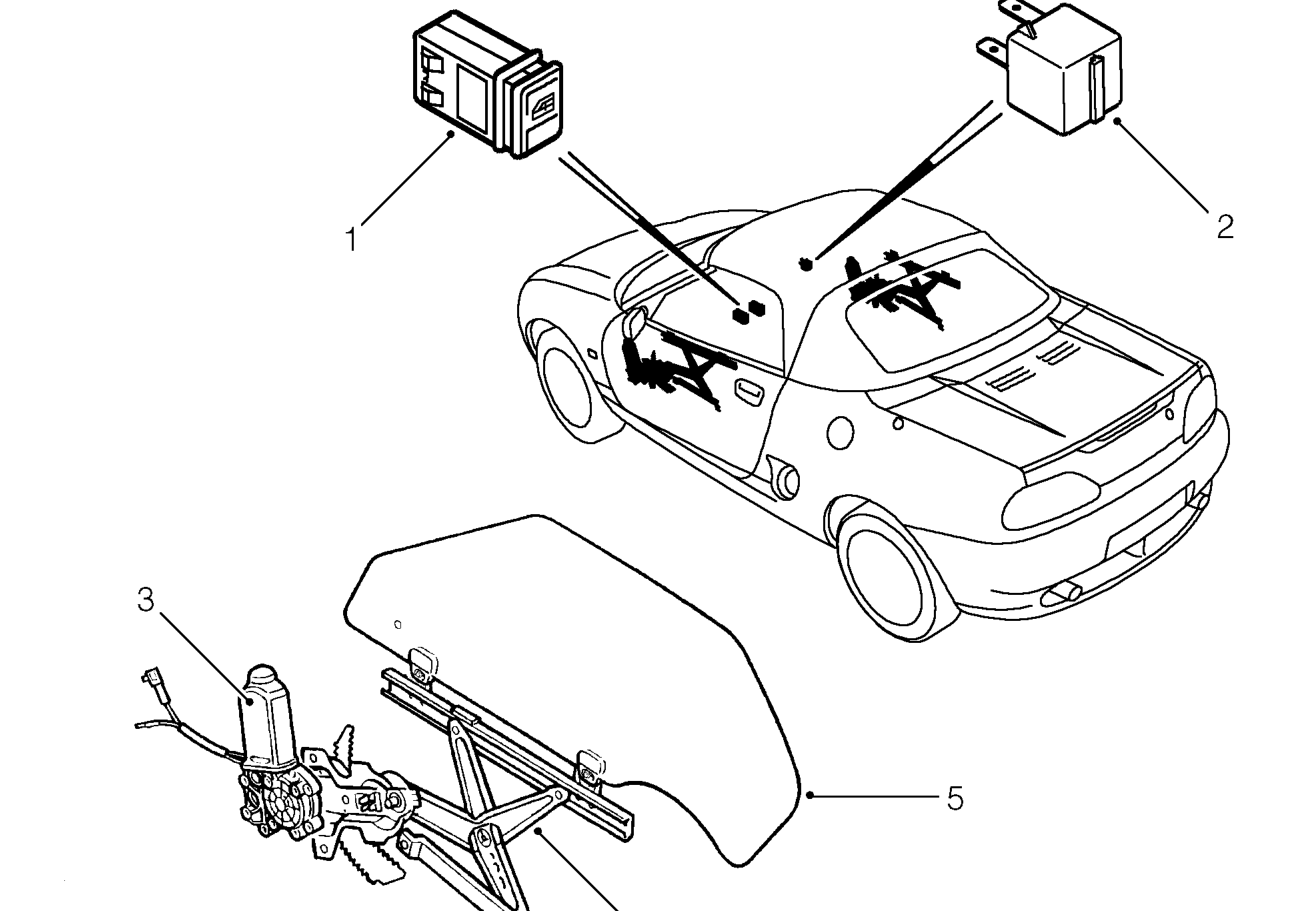

1. Window switch
2. Window relay
3. Motor
4. Regulator
5. Glass

The two window lift system is controlled by switches fitted in the centre console. When the ignition is switched on, the electric window relay located on the driver’s compartment fusebox, switches power supply to the window circuit. The electric motor via an integral gearbox, operates the regulator assembly to lift and lower the window glass.

Battery supply from the electric window relay to the window switches is via two fuses, one for each door, located in the driver’s compartment fusebox.
