Trim casing

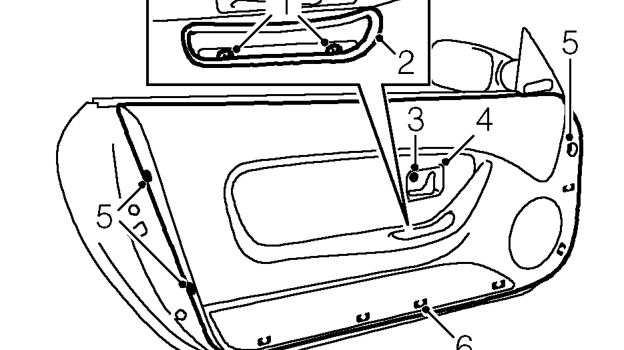

TRIM CASING

Service repair no - 76.34.01/99

Remove

1. Remove 2 screws securing door pull.
2. Remove door pull from trim casing.
3. Remove screw securing remote door handle escutcheon.
4. Remove remote door handle escutcheon.
5. Remove 3 screws securing trim casing.
6. Release 6 lower trim casing retaining clips, remove trim casing.

Refit

1. Fit trim casing to door and secure with clips.
2. Fit screws securing trim casing to door.
3. Fit remote door handle escutcheon and secure with screw.
4. Fit door pull to trim casing and secure with screws.

PLASTIC SHEET

Service repair no - 76.34.26

NOTE: A NEW plastic sheet must always be fitted, do not attempt to repair an existing plastic sheet.

NOTE: To obtain an effective seal when fitting a new plastic sheet, ensure that the plastic sheet and door contact surface are at room temperature: between 18 °C to 30 °C.

Remove

1. Remove the remote door handle. See this section.

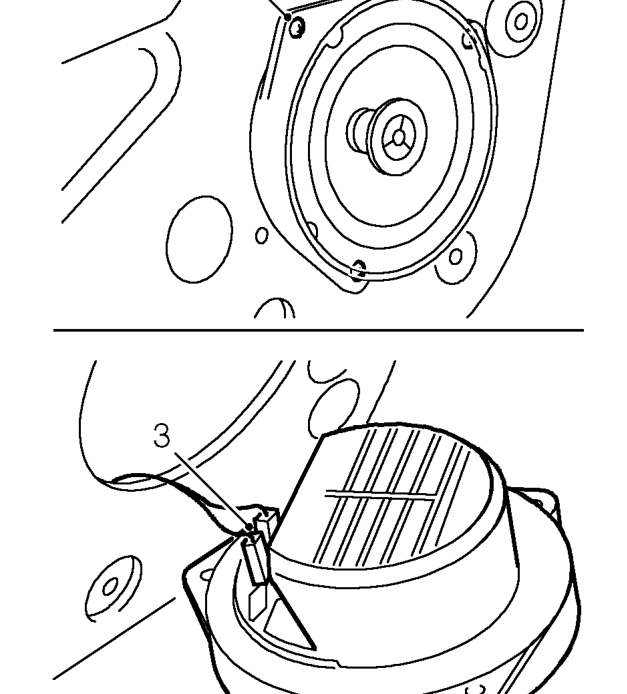

2. Remove 3 screws securing door speaker.
3. Release speaker, disconnect 2 Lucars and remove speaker.
