Door glass regulator

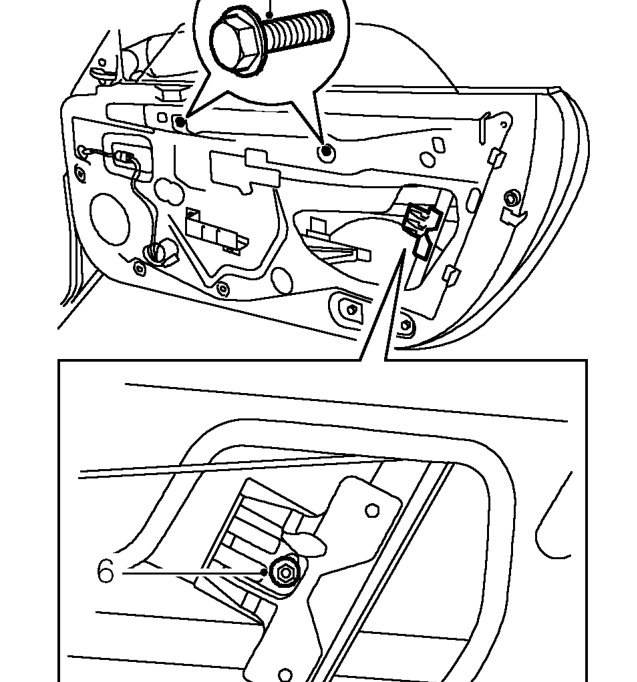

6. Remove 3 bolts securing glass to regulator.
7. Remove glass.

Refit

1. Position glass to regulator and align rear guide to glass.
2. Fit bolts securing glass to regulator but do not tighten.
3. Adjust door glass. See this section.
4. Position plastic sheet and secure in place.
5. Fit outer waist seal and secure with clips.
6. Fit trim casing. See this section.

DOOR GLASS REGULATOR

Service repair no - 76.31.45

Remove

1. Remove glass. See this section.
2. Remove plastic sheet. See this section.

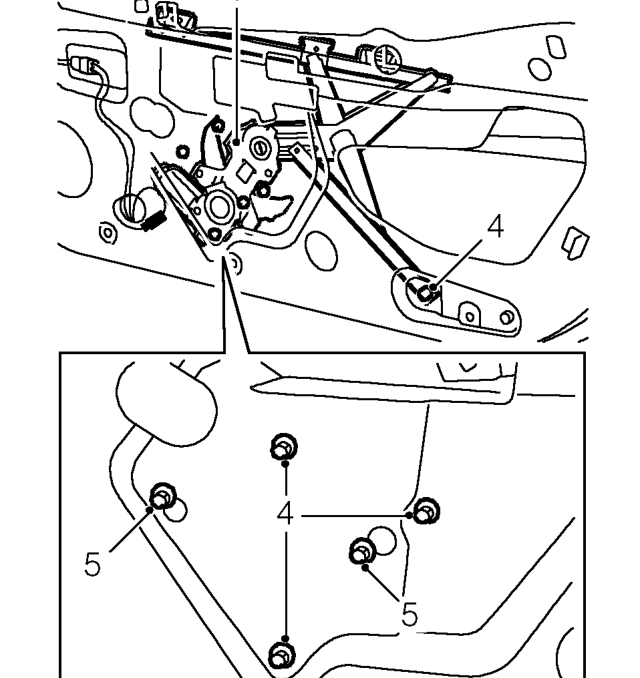

3. Disconnect multiplug from motor.

4. Remove 4 bolts securing regulator to door.
5. Loosen 2 bolts securing regulator to door.
6. Remove regulator.

Refit

1. Position regulator to door and feed multiplug through aperture.
2. Align bolts to slotted holes and tighten to 7 Nm.
3. Fit and tighten bolts to 7 Nm.
4. Fit glass. See this section.
5. Fit plastic sheet. See this section.
