Outer waist seal

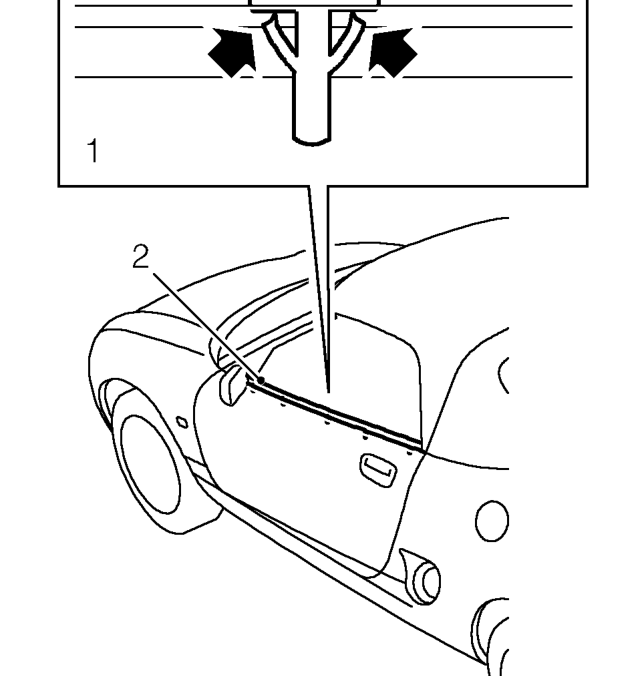

OUTER WAIST SEAL

Service repair no - 76.31.53

Remove

1. Starting from the rear of the door, release 5 clips securing seal to door.
2. Remove seal.

Refit

1. Position seal to door and align clips.
2. Fit seal and engage clips.

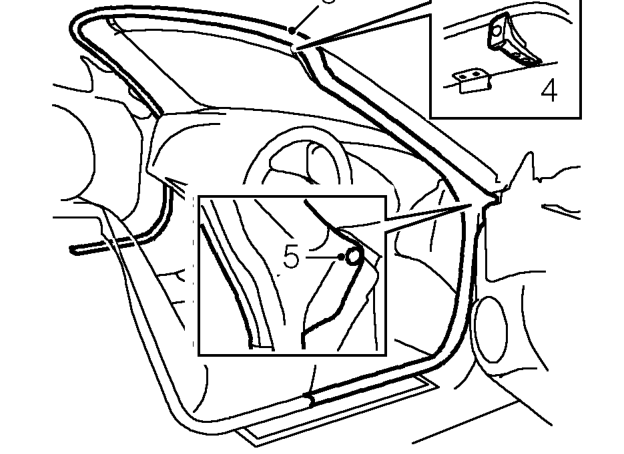

DOOR AND HEADER SEAL

Service repair no - 76.31.85

Remove

1. Open both doors.
2. Lower both sun visors.
3. Release catches and lower hood.

4. Remove 2 Tx30 Torx screws securing each hood striker and remove both strikers.
5. Remove 2 studs securing seal to ’A’ posts.
6. Remove seal.

Refit

1. Position and centralise seal to header rail.
2. Secure seal to ’A’ posts with studs.
3. Engage seal to flanges of header, ’A’ posts and sills.
4. Fit hood strikers and tighten screws to 6 Nm.
5. Reposition sun visors.
6. Raise hood and secure catches.
7. Close doors.
