MG MGF Body Repair Manual (1995-2000)06 · Body
06 · Body & interior

Door - central locking components

Make
MG
Model
MGF Body Repair Manual
Year
1995–2000
Section
Doors › Door - central locking components
BodyDoor - central locking components

DOOR - CENTRAL LOCKING COMPONENTS

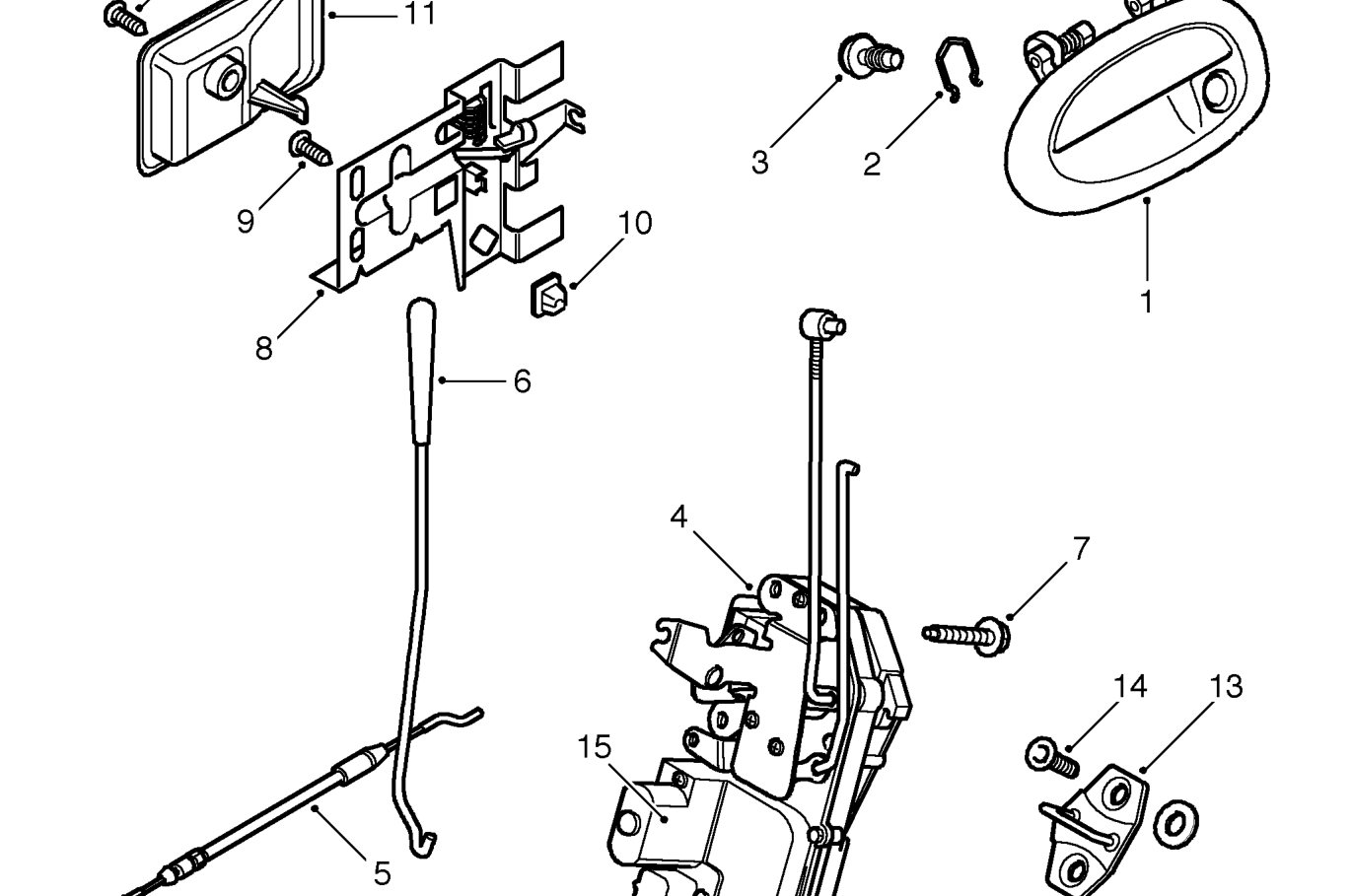

Door - central locking components
  1. External door handle assembly
  2. Retaining clip - cylinder block
  3. Bolt - outer door handle
  4. Latch assembly
  5. Cable - remote door handle
  6. Sill button and rod
  7. Screw - latch assembly
  8. Remote door handle assembly
  9. Screw - inside door handle
  10. Holder - lock rod
  11. Escutcheon - remote door handle
  12. Screw - escutcheon
  13. Striker - door lock
  14. Bolt - striker
  15. Lock motor
