Private lock (page 2 of 2)

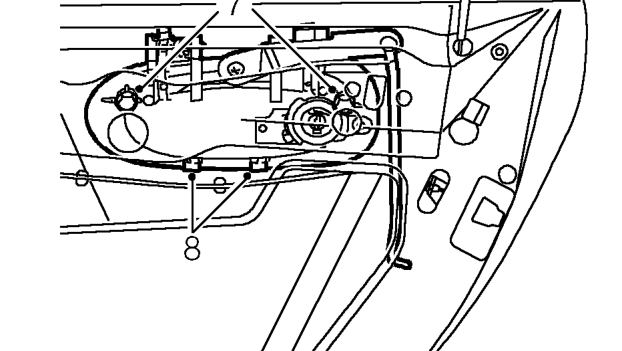

7. Remove 2 bolts securing handle to door.
8. Release 2 clips retaining handle to door and position handle.

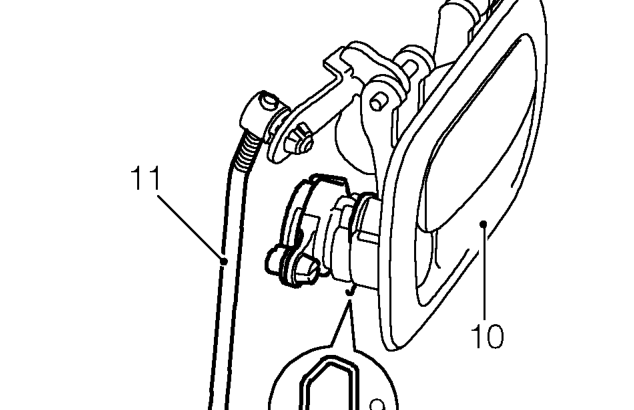

9. Release clip securing lock to handle and remove lock.
10. Remove handle.
11. Remove rod from handle.

Refit

1. Fit rod to handle and position handle to door.
2. Engage handle to door and tighten bolts to 2.5 Nm.
3. Adjust rod length to align rod to latch.
4. Position rod and secure with clip.
5. Driver’s side: engage lock connecting rod.
6. Fully raise door window.
7. Position lock to handle and secure with clip.
8. Secure plastic sheet.
9. Fit trim casing. See this section.
