BONNET - ADJUST

Service repair no - 76.16.02/01

Adjust

  1. Check alignment of bonnet.
  2. Open bonnet.
Bonnet - adjust – Open bonnet.
  1. Loosen 4 bolts securing bonnet to hinges and adjust bonnet.
  2. Lightly tighten bolts and close bonnet.
  3. Check gaps are equal and bonnet is aligned with adjacent panels.
  4. Open bonnet, adjust hinges if necessary and tighten bolts to 9 Nm.
  5. If necessary, adjust bonnet locking plate. See this section.

BONNET LOCK PLATE - ADJUST

Service repair no - 76.16.20

Adjust

  1. Open bonnet.

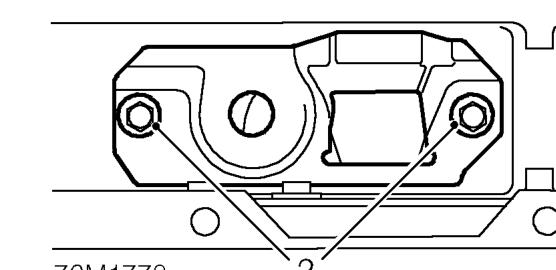

Bonnet lock plate - adjust – Open bonnet.
  1. Loosen 2 bolts securing lock plate to body.
  2. Position lock plate fully forward.
  3. Gently lower bonnet. Align striker pin with lock and ensure safety catch engages in lock plate.
  4. Tighten bolts to 25 Nm.
  5. Check correct operation of bonnet latch and alignment of bonnet.
  6. If necessary adjust bonnet. See this section.
