BodyFront wheel arch liner

FRONT WHEEL ARCH LINER

Service repair no - 76.10.48

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).

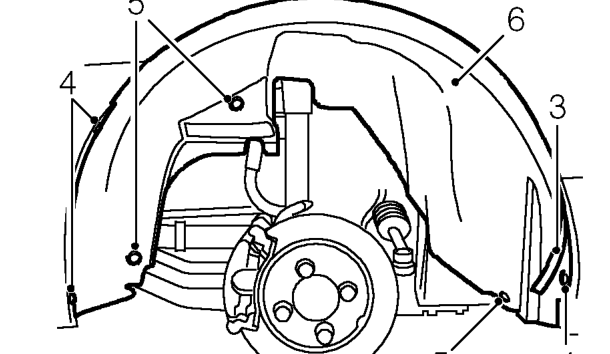

Front wheel arch liner – Remove road wheel(s).
  1. Release wheel arch flange seal from rear lower edge of wing panel.
  2. Remove 3 screws securing wheel arch liner.
  3. Remove 3 scrivet screws securing wheel arch liner, remove scrivets.
  4. Remove wheel arch liner.

Refit

  1. Fit and align wheel arch liner.
  2. Fit scrivet fasteners securing wheel arch liner.
  3. Fit and tighten screws securing wheel arch liner.
  4. Secure wheel arch flange seal.
  5. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
  6. Remove stand(s) and lower vehicle.

UNDERBONNET CLOSING PANEL

Service repair no - 76.10.94

Remove

  1. Open bonnet.

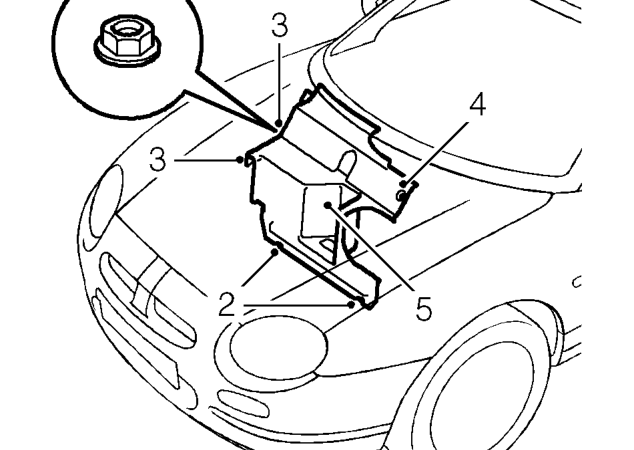

Underbonnet closing panel – Open bonnet.
  1. Remove 2 fixings securing closing panel to spare wheel well.
  2. Remove 2 fixings securing closing panel to scuttle.
  3. Remove fixing securing closing panel to air intake plenum.
  4. Remove closing panel.

Refit

  1. Fit closing panel to body studs and secure fixings.
  2. Close bonnet.
