Side air vent

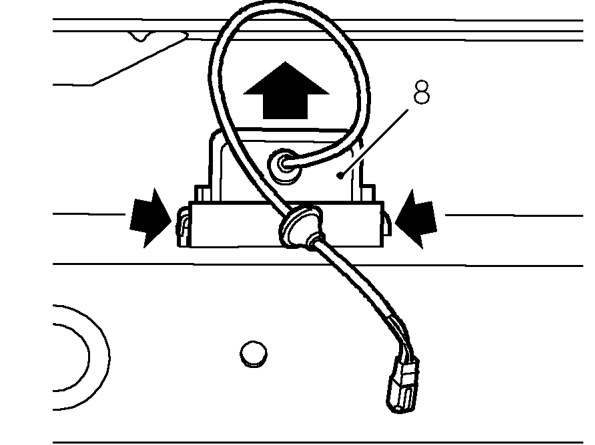

8. Release clip securing number plate lamp assembly to bumper and remove lamp.
9. Remove other number plate lamp.

Refit

1. Fit number plate lamps to bumper and engage clips.
2. Position wires through holes and align bumper to body fixings.
3. Fit nuts and tighten to 25 Nm.
4. Fit thread covers.
5. Connect multiplugs and position carpet.
6. Fit bolts and tighten to 25 Nm.
7. Secure bumper to wheel arches with screws.

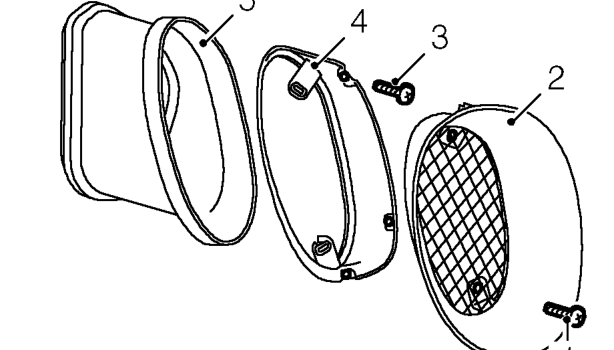

SIDE AIR VENT

Service repair no - 76.55.19

Remove

1. Remove 2 screws securing outer grille.
2. Remove outer grille.
3. Remove 3 screws securing inner retaining plate.
4. Remove inner retaining plate.
5. Remove air intake pipe.

Refit

1. Locate air intake pipe to body.
2. Fit inner retaining plate and tighten screws.
3. Fit outer grille and tighten screws.
