Boot lid latch

BOOT LID LATCH

Service repair no - 76.19.11

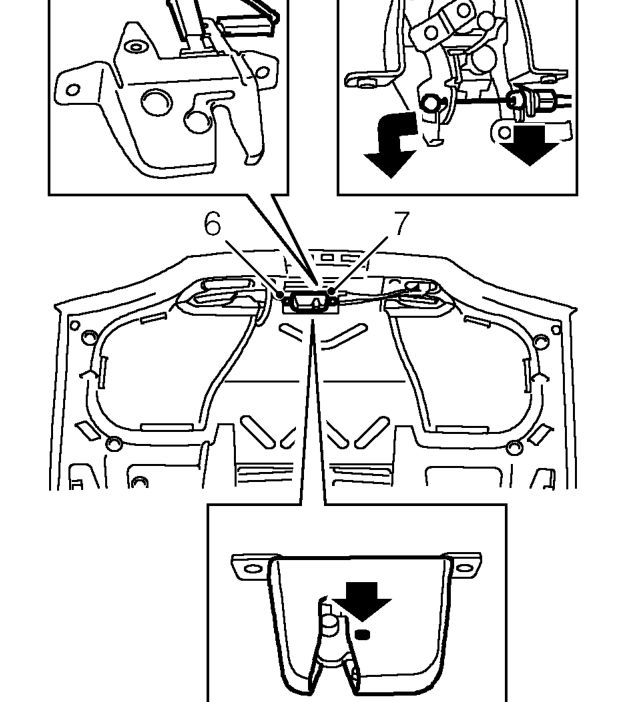

Remove

1. Open boot lid.

2. Disconnect 2 Lucars and multiplug from latch assembly.
3. Release cable from latch.
4. Release clip and remove cover from latch.
5. Mark position of latch to boot for reference.
6. Remove 2 bolts securing latch to boot lid.
7. Remove latch assembly.

Refit

1. Position latch to boot lid using reference marks and tighten bolts to 10 Nm.
2. Connect cable and secure to latch.
3. Connect Lucars and multiplug, and fit latch cover.
4. Check latch operation and if necessary, adjust boot lid striker. See this section.

FRONT BUMPER ARMATURE

Service repair no - 76.22.49

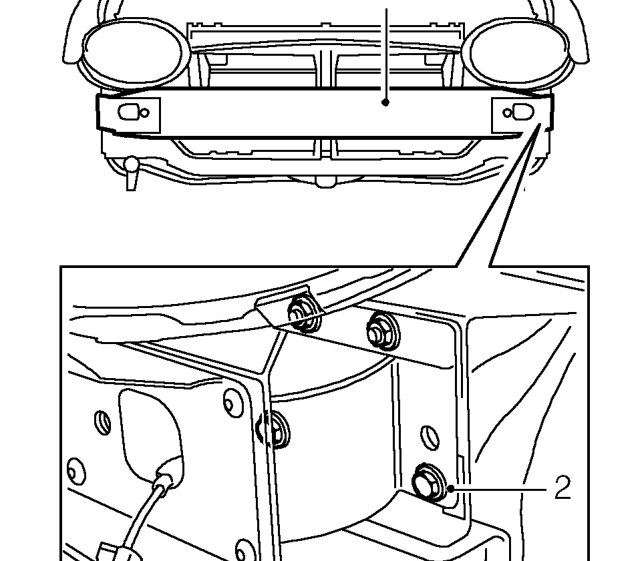

Remove

1. Remove front bumper valance. See this section.

2. Remove 2 bolts and 2 nuts securing each end of armature to front panel.
3. Remove armature.

Refit

1. Fit armature to fixing studs.
2. Fit nuts and bolts and tighten to 25 Nm.
3. Fit front bumper valance. See this section.
