Workshop Manuals Factory service & repair MG
MG MGF Body Repair Manual (1995-2000)06 · Body
06 · Body & interior

Rear bumper valance

Make
MG
Model
MGF Body Repair Manual
Year
1995–2000
Section
Exterior fittings › Rear bumper valance
BodyRear bumper valance · page 1 of 2

Refit

  1. Fit bumper valance.
  2. Fit bolts securing bumper valance to bumper armature and tighten to 25 Nm.
  3. Fit and tighten screws securing bumper valance to bonnet locking platform.
  4. Fit and tighten screws securing each end of bumper valance to wheel arch liners.
  5. Fit and tighten screws securing each end of bumper valance to wings.
  6. Fit both direction indicators. See ELECTRICAL, Repairs.
  7. Remove stand(s) and lower vehicle.

REAR BUMPER VALANCE

Service repair no - 76.22.74

Remove

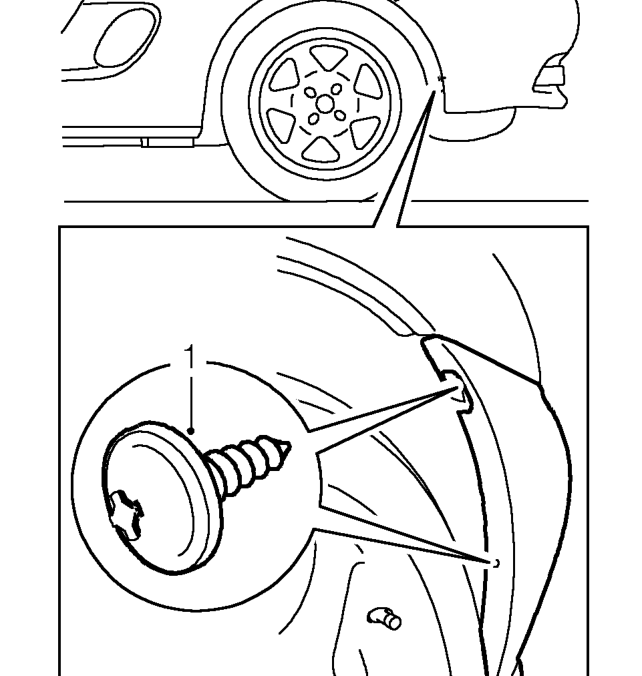

Rear bumper valance – Service repair no - 76.22.74
  1. Remove 4 screws securing bumper to wheel arches.
