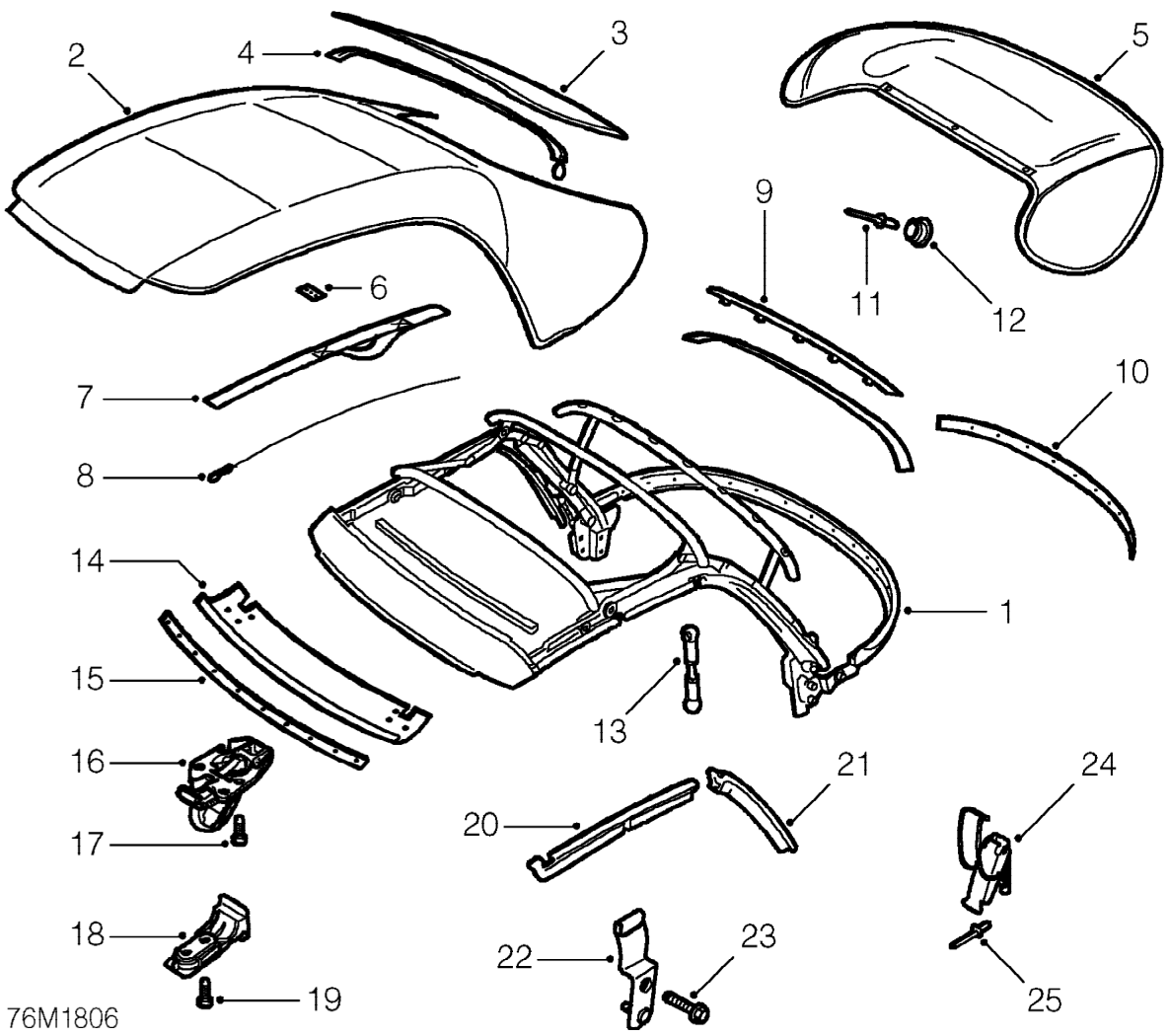

HOOD ASSEMBLY COMPONENTS - SOFT TOP

1. Hood frame
2. Hood
3. Backlight
4. Backlight zip
5. Hood cover, tonneau
6. Retaining plate, 6 off
7. Tape elastic, 2 off
8. Tension cable, 2 off
9. Rear bow extrusion
10. Rear bow, canopy insert
11. Pop rivet - tonneau panel, 2 off
12. Stud - tonneau panel, 2 off
13. Link rod, 2 off
14. Front header fabric cover
15. Front header insert
16. Catch - front header, 2 off
17. Torx screw - catch, 6 off
18. Striker - front header, 2 off
19. Torx screw - striker, 4 off
20. Seal - cantrail, 2 off
21. Seal - B post, 2 off
22. Mounting plate - B post, 2 off
23. Screw - plate to body, 4 off
24. Catch - rear hoodwell, 5 off
25. Rivet - hoodwell catch, 10 off
