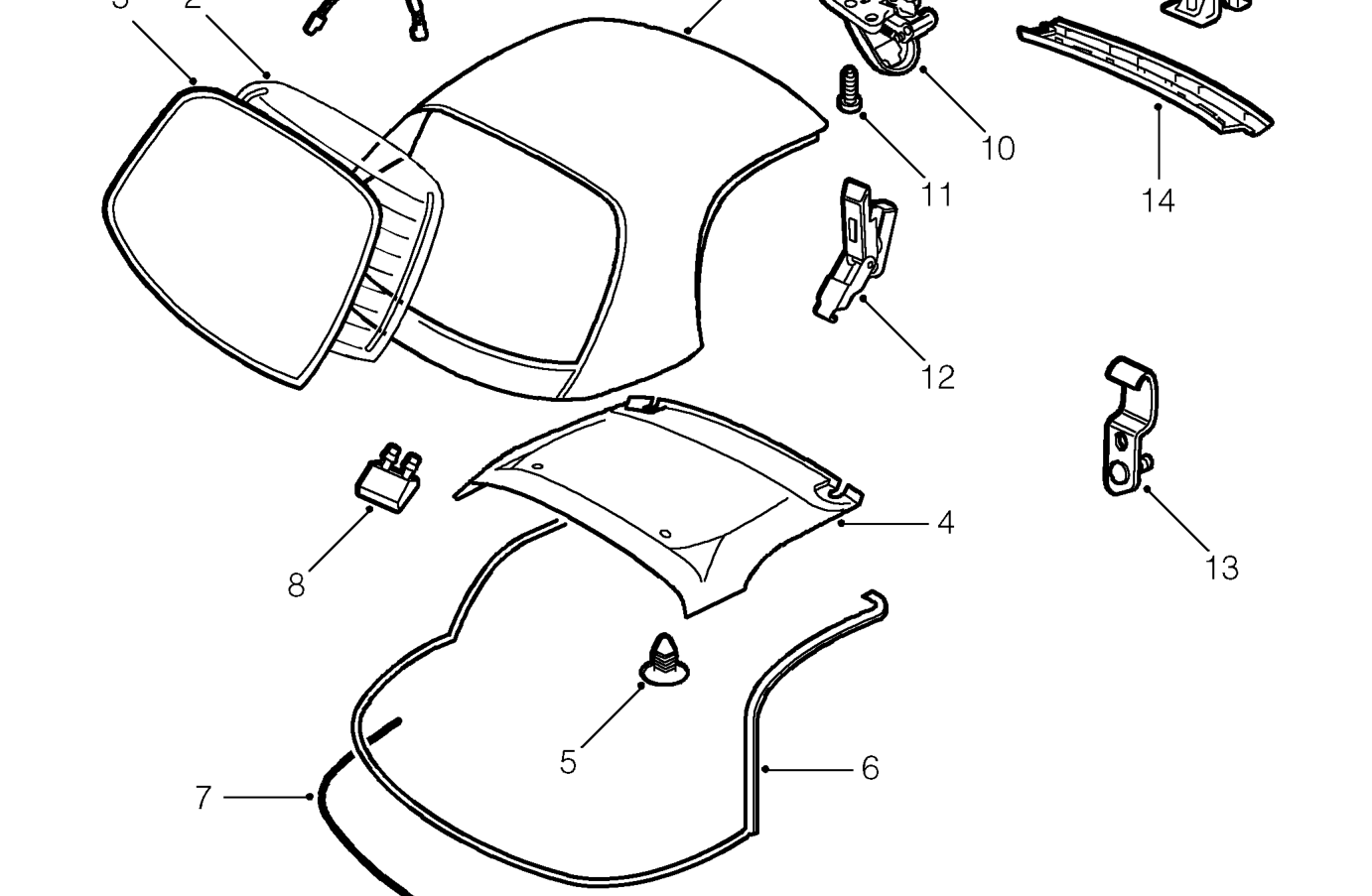

HOOD ASSEMBLY COMPONENTS - HARD TOP

1. Hard top assembly
2. Backlight glass
3. Weatherstrip - backlight
4. Headlining
5. Trim stud - headlining, 2 off
6. Seal
7. Finisher - lower edge
8. Block spacer, 2 off
9. Harness extension
10. Catch assembly - front header, 2 off
11. Screw - front catch assembly, 6 off
12. Catch assembly - B post, 2 off
13. Mounting plate - B post, 2 off
14. Header finisher - front
15. Clip - header seal, 6 off
