Door Glass

9. Close door and check cheater is positioned correctly, this can be judged by the bulge made by the glass on the ’A’ post seal which should be uniform along the seal.
10. Fit speaker See ELECTRICAL, Repairs.
11. Fit door trim casing See Doors.

Door Glass

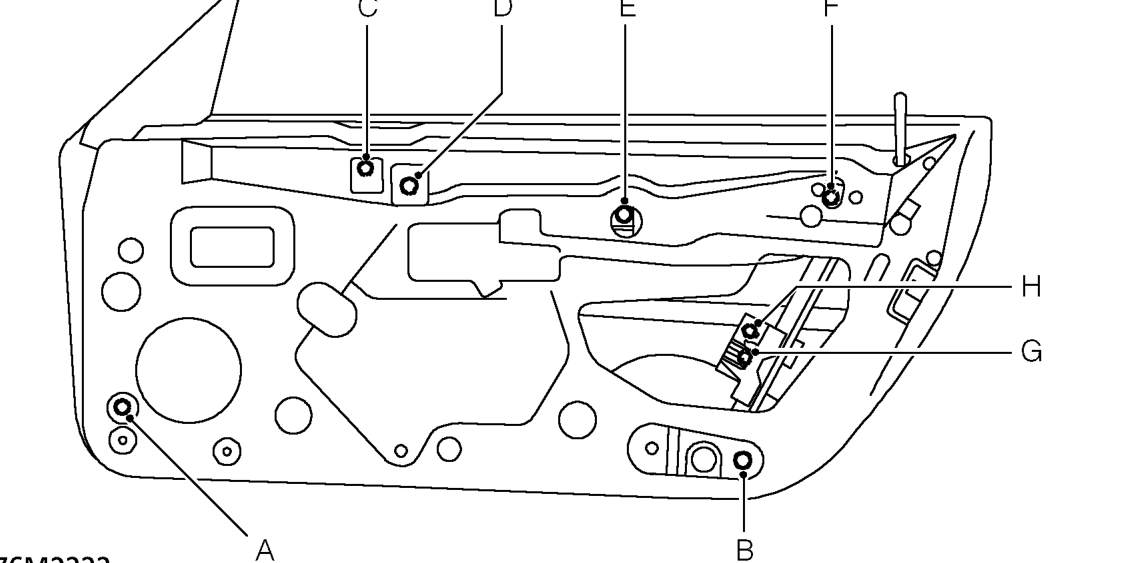

A: This gives glass deflection adjustment (pivoting at waist rail). B: This gives glass deflection adjustment (pivoting at waist rail). C: This gives glass height adjustment (this is also the glass stop). D: This gives glass lateral and vertical adjustment. E: This gives glass lateral and vertical adjustment.

F: These give glass height adjustment (this is also the glass stop). G: This is used at beginning of adjustment to position the door glass centrally in waist rail slot. Tighten bolt to 7 Nm. H: This is positioned at rear glass rail at final stage of adjustment and tightened to 7 Nm.
