Description: ECU - Alarm
- Make
- MG
- Model
- MGF Electrical Library
- Year
- 2001 model year on
- Section
- C0057 ECU - Alarm › Description: ECU - Alarm
ConnectorsDescription: ECU - Alarm
| Cav 1 | Col NK | Cct ALL |
| 6 | GW | ALL |
| 7 | GR | ALL |
| 8 | SW | ALL |
| 9 | NS | ALL |
| 11 | SR | ALL |
| 12 | PK | ALL |

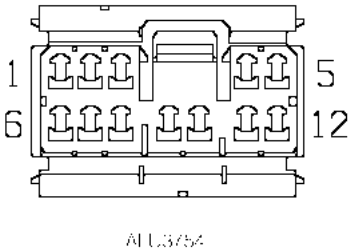

Description: ECU - Alarm

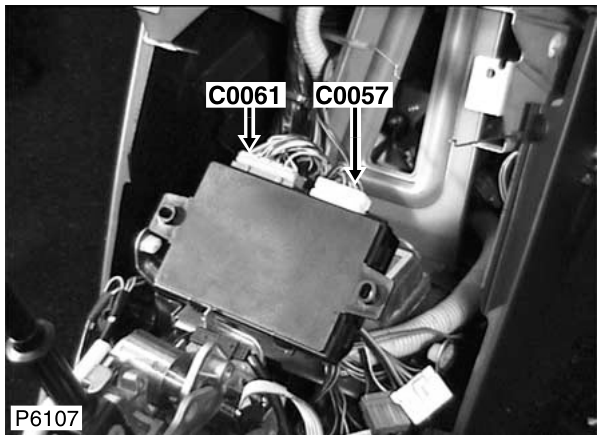

Location: Behind centre console
Colour: WHITE Gender: Female
