Description: ECU - Alarm - RHD

Make

MG

Model

MGF Electrical Library

Year

2001 model year on

Section

C0061 ECU - Alarm - RHD › Description: ECU - Alarm - RHD

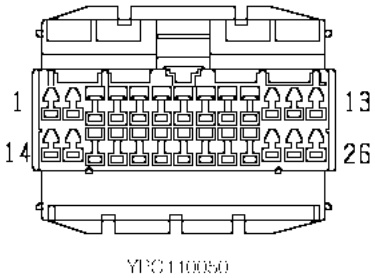

ConnectorsDescription: ECU - Alarm - RHD

Cav 1	Col W	Cct ALL
2	B	ALL
4	BK	ALL
6	PW	ALL
7	PS	ALL
8	PB	ALL
9	YR	ALL
10	Y	ALL
11	K	ALL
13	O	ALL
14	WB	10
16	RU	ALL
17	UK	ALL
18	BP	ALL
19	BO	ALL
20	NB	10
21	PR	ALL
22	BR	ALL
23	BU	8
23	BW	18
24	OU	ALL
25	WG	ALL
26	P	ALL

Description: ECU - Alarm - RHD

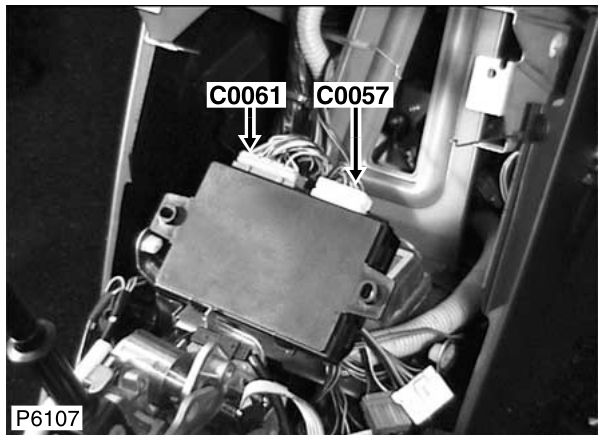

Location: Behind centre console

Colour: GREY Gender: Female

05 General
