Colour: GREY Gender: Female
- Make
- MG
- Model
- MGF Electrical Library
- Year
- 2001 model year on
- Section
- C0449 Main harness to engine harness › Colour: GREY Gender: Female
ConnectorsColour: GREY Gender: Female
| Cav 1 | Col SW | Cct ALL |
| 2 | KB | ALL |
| 3 | UY | ALL |
| 4 | R | 2 |
| 5 | GY | ALL |
| 6 | GN | ALL |
| 7 | NY | ALL |
| 8 | GU | ALL |
| 9 | NU | ALL |
| 10 | WO | ALL |
| 11 | WG | 8 |
| 12 | U | 2 |
| 13 | GB | ALL |
| 14 | UR | ALL |

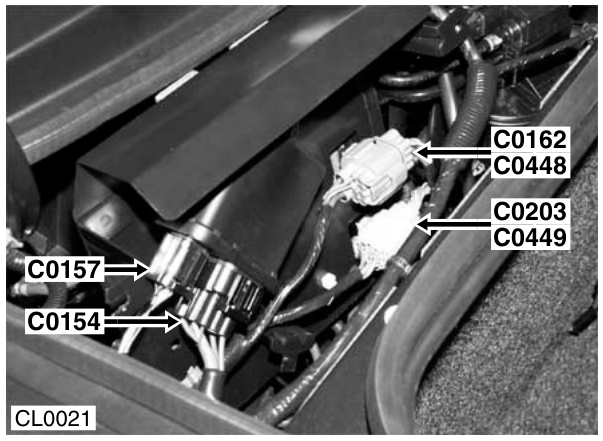

Description: Main harness to engine harness Location: LH side of engine compartment
Colour: GREY Gender: Female
