Colour: BLUE Gender: Female
- Make
- MG
- Model
- MGF Electrical Library
- Year
- up to 2001 model year
- Section
- C0064 Switch - Fog guard lamp - Rear › Colour: BLUE Gender: Female
ConnectorsColour: BLUE Gender: Female
| Cav 1 | Col RY | Cct ALL |
| 2 | RB | ALL |
| 4 | B | ALL |
| 5 | UY | ALL |

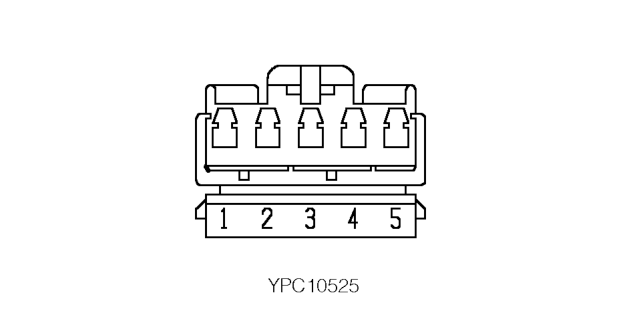

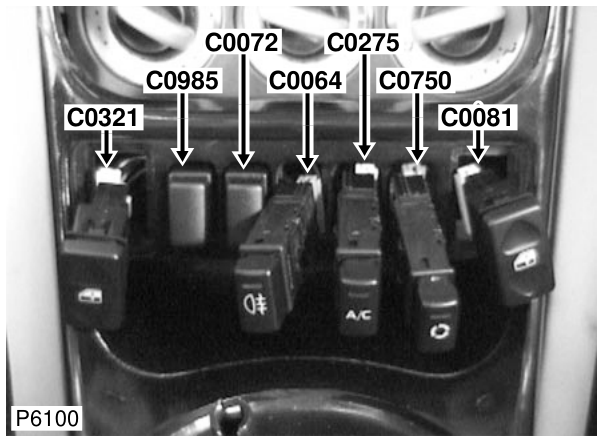

Description: Switch - Fog guard lamp - Rear Location: Beneath front console
Colour: BLUE Gender: Female
