Description: Switch - Mirror
- Make
- MG
- Model
- MGF Electrical Library
- Year
- up to 2001 model year
- Section
- C0066 Switch - Mirror › Description: Switch - Mirror
ConnectorsDescription: Switch - Mirror
| Cav 1 | Col BY | Cct 7 |
| 2 | BN | 7 |
| 3 | SW | 7 |
| 4 | LG | 7 |
| 5 | BP | 7 |
| 6 | B | 7 |
| 7 | BU | 7 |

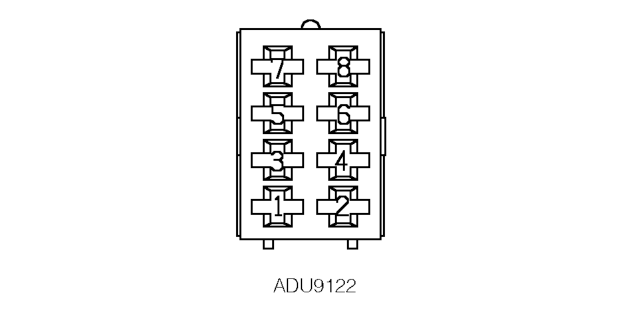

Description: Switch - Mirror

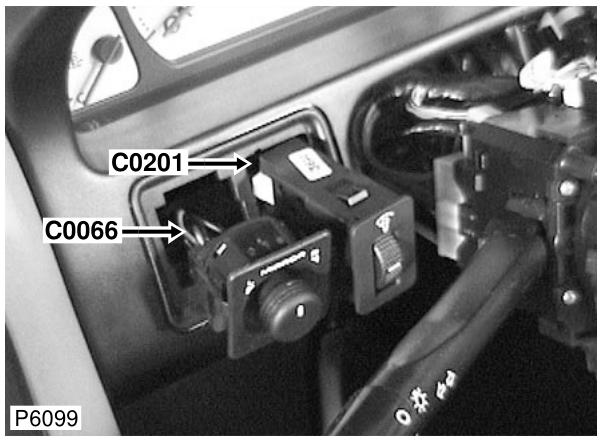

Location: Adjacent steering column
Colour: BLACK Gender: Female
