Colour: BLACK Gender: Male
- Make
- MG
- Model
- MGF Electrical Library
- Year
- up to 2001 model year
- Section
- C0160 Engine harness to main harness › Colour: BLACK Gender: Male

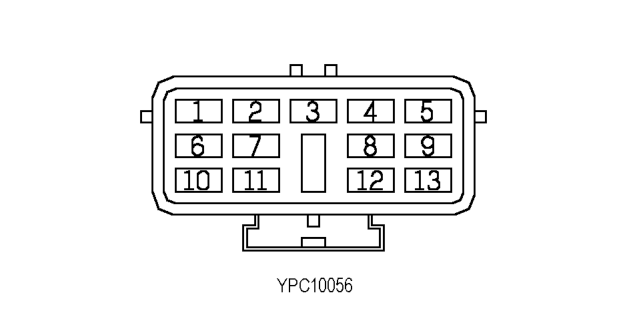

ConnectorsColour: BLACK Gender: Male
| Cav 1 | Col UY | Cct ALL |
| 2 | WP | ALL |
| 3 | UR | ALL |
| 4 | UB | ALL |
| 5 | R | ALL |
| 6 | UG | ALL |
| 7 | NU | ALL |
| 8 | WN | ALL |
| 9 | K | ALL |
| 10 | KB | ALL |
| 11 | SW | ALL |
| 12 | WO | ALL |

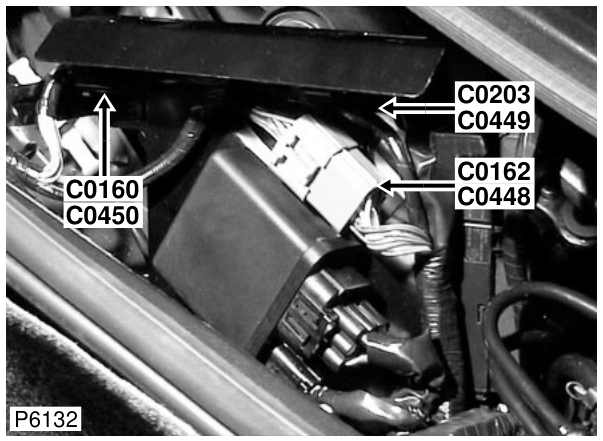

Description: Engine harness to main harness Location: LH side of engine compartment
Colour: BLACK Gender: Male
