Colour: BLUE Gender: Male
- Make
- MG
- Model
- MGF Electrical Library
- Year
- up to 2001 model year
- Section
- C0162 Engine harness to main harness › Colour: BLUE Gender: Male

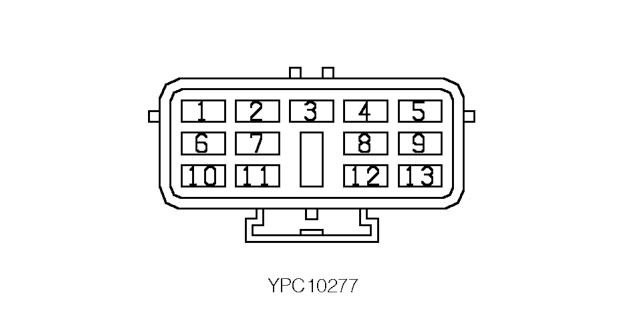

ConnectorsColour: BLUE Gender: Male
| Cav 1 | Col W | Cct ALL |
| 2 | WB | ALL |
| 3 | WR | ALL |
| 4 | NS | ALL |
| 5 | GY | ALL |
| 6 | GN | ALL |
| 7 | NY | ALL |
| 8 | NB | ALL |
| 9 | GU | ALL |
| 10 | BW | ALL |
| 11 | YR | ALL |
| 12 | GR | ALL |
| 13 | US | ALL |
| 13 | Y | 16 |

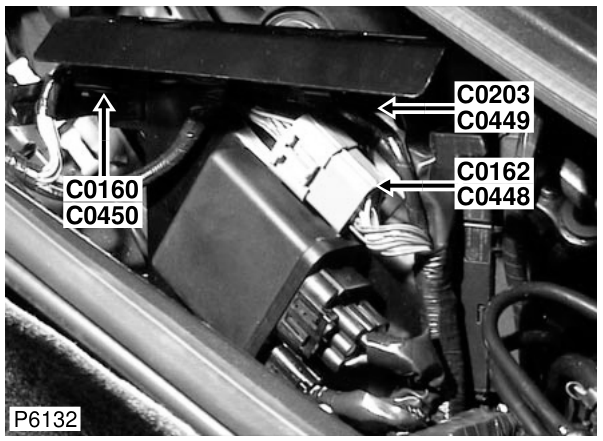

Description: Engine harness to main harness Location: LH side of engine compartment
Colour: BLUE Gender: Male
