Description: Header - LHD

Make

MG

Model

MGF Electrical Library

Year

up to 2001 model year

Section

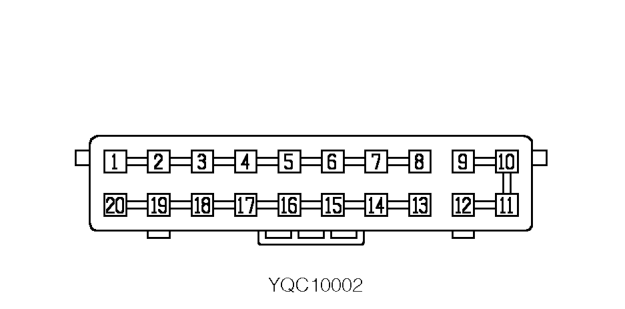

C0285 Header - LHD › Description: Header - LHD

ConnectorsDescription: Header - LHD

Cav 1	Col RB	Cct ALL
2	RB	ALL
3	RB	ALL
4	RB	12
5	RB	ALL
6	RB	ALL
7	RB	ALL
8	RB	ALL
9	BR	ALL
11	BR	ALL
12	BR	ALL
13	RB	8
14	RB	ALL
15	RB	ALL
16	RB	ALL
17	RB	ALL
18	RB	ALL
19	RB	ALL
20	RB	ALL

Description: Header - LHD

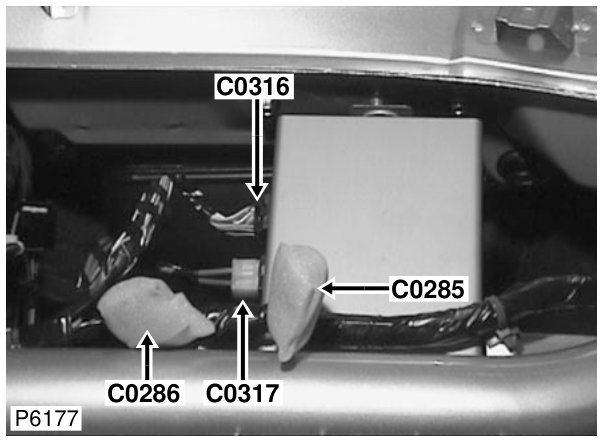

Location: Behind RH side of fascia

Colour: GREY Gender: Female
