Description: Header - RHD

Make

MG

Model

MGF Electrical Library

Year

up to 2001 model year

Section

C0286 Header - RHD › Description: Header - RHD

ConnectorsDescription: Header - RHD

Cav 1	Col B	Cct ALL
2	B	ALL
3	B	ALL
4	B	ALL
5	B	ALL
6	B	ALL
8	B	ALL
9	BG	ALL
10	BG	ALL
11	BG	ALL
13	B	ALL
14	B	ALL
15	B	ALL
16	B	ALL
17	B	ALL
18	B	ALL
19	B	ALL
20	B	ALL

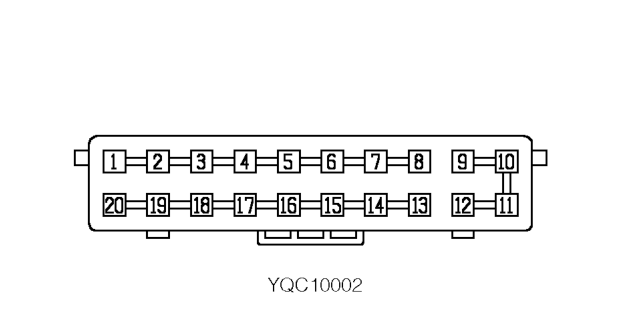

Description: Header - RHD

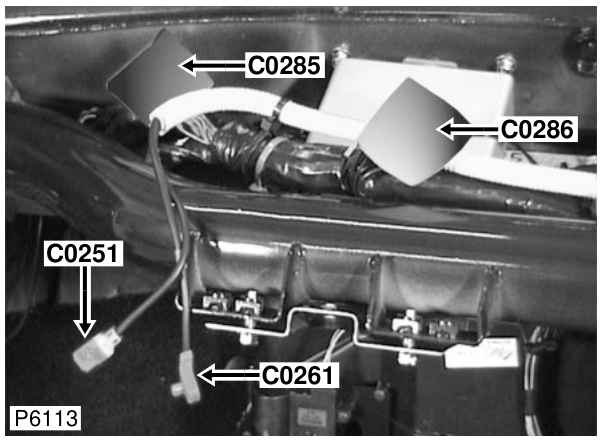

Location: Behind LH side of fascia

Colour: GREY Gender: Female
