Colour: BLACK Gender: Female
- Make
- MG
- Model
- MGF Electrical Library
- Year
- up to 2001 model year
- Section
- C0450 Main harness to engine harness › Colour: BLACK Gender: Female
ConnectorsColour: BLACK Gender: Female
| Cav 1 | Col UY | Cct 2 |
| 2 | WP | ALL |
| 3 | UR | 2 |
| 4 | UB | 2 |
| 5 | R | 2 |
| 6 | UG | 2 |
| 7 | NU | ALL |
| 8 | WN | ALL |
| 9 | K | 5 |
| 10 | KB | ALL |
| 11 | SW | ALL |
| 12 | WO | ALL |

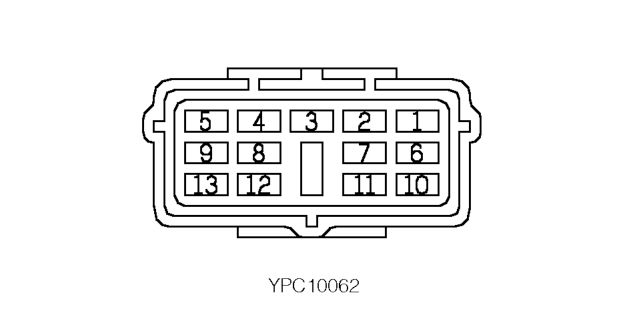

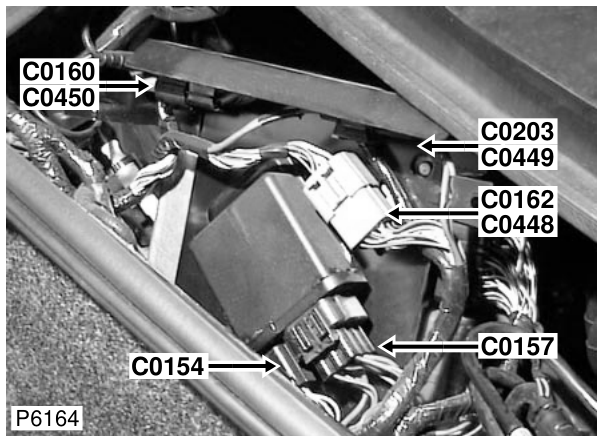

Description: Main harness to engine harness Location: LH side of engine compartment
Colour: BLACK Gender: Female
