Colour: GREY Gender: Female
- Make
- MG
- Model
- MGF Electrical Library
- Year
- up to 2001 model year
- Section
- C0451 Main harness to engine harness › Colour: GREY Gender: Female
ConnectorsColour: GREY Gender: Female
| Cav 1 | Col WG | Cct 8 |
| 2 | SB | 8 |
| 4 | BR | 13 |
| 5 | PW | 8 |
| 6 | NK | 8 |
| 8 | US | 8 |
| 9 | UY | 8 |
| 10 | OW | 8 |
| 11 | UR | 8 |
| 12 | UW | 8 |

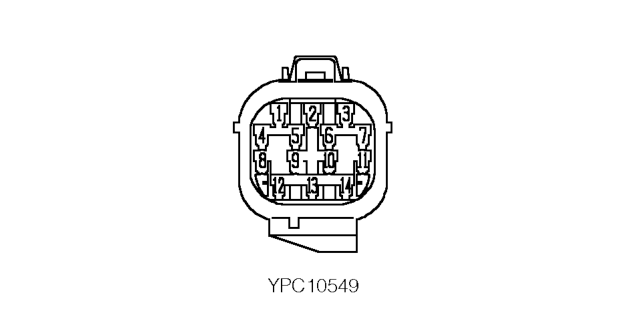

Description: Main harness to engine harness Location: LH side of engine compartment
Colour: GREY Gender: Female
