Description: Modulator - ABS
- Make
- MG
- Model
- MGF Electrical Library
- Year
- up to 2001 model year
- Section
- C0501 Modulator - ABS › Description: Modulator - ABS

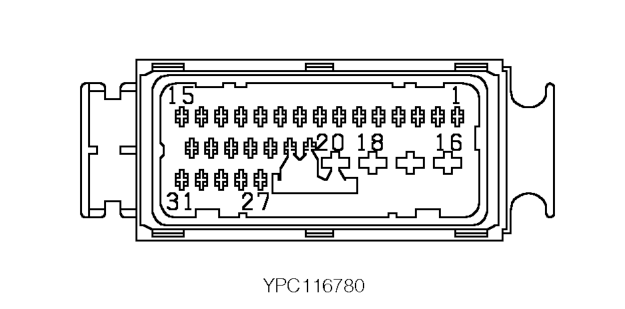

ConnectorsDescription: Modulator - ABS
| Cav 1 | Col G | Cct 1 |
| 2 | Y | 1 |
| 4 | P | 1 |
| 5 | O | 1 |
| 6 | U | 1 |
| 7 | N | 1 |
| 8 | W | 1 |
| 9 | R | 1 |
| 11 | K | 1 |
| 14 | GP | 1 |
| 15 | GK | 1 |
| 16 | B | 1 |
| 17 | NK | 1 |
| 18 | NK | 1 |
| 19 | B | 1 |
| 21 | UR | 1 |
| 23 | SB | 8 |
Description: Modulator - ABS

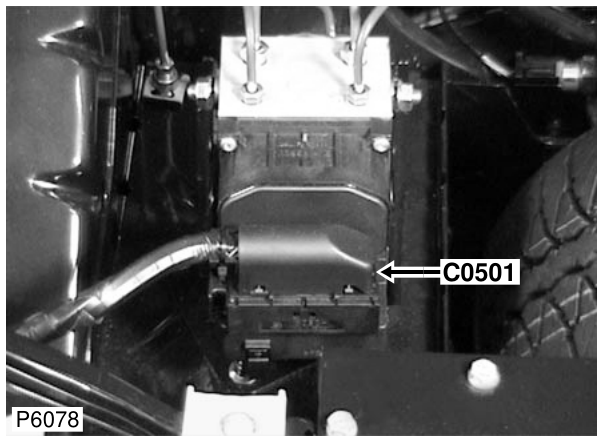

Location: Under bonnet, RH side
Colour: BLACK Gender: Female
