MG MGF Electrical Library (up to 2001 model year)05 · Connectors
05 · General

Description: Switch - Boot Lock

Make
MG
Model
MGF Electrical Library
Year
up to 2001 model year
Section
C0831 Switch - Boot Lock › Description: Switch - Boot Lock
ConnectorsDescription: Switch - Boot Lock
Diagram
Cav 1Col BRCct ALL
2BALL

Description: Switch - Boot Lock

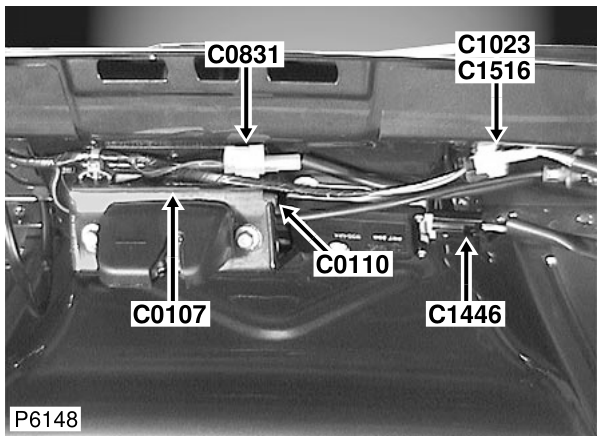

Location: Boot latch

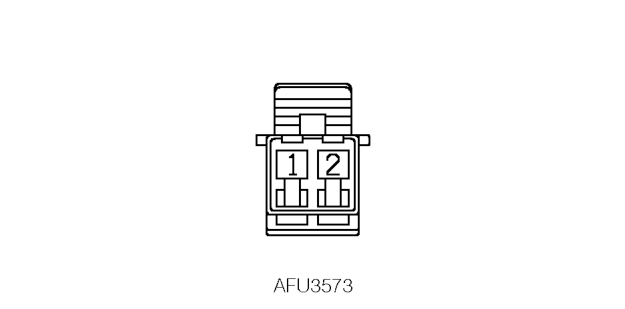

Description: switch - boot lock – Location: Boot latch

Colour: NATURAL Gender: Female
