Workshop Manuals Factory service & repair MG
MG MGF Electrical Library (up to 2001 model year)05 · Connectors
05 · General

Colour: BLACK Gender: Female

Make
MG
Model
MGF Electrical Library
Year
up to 2001 model year
Section

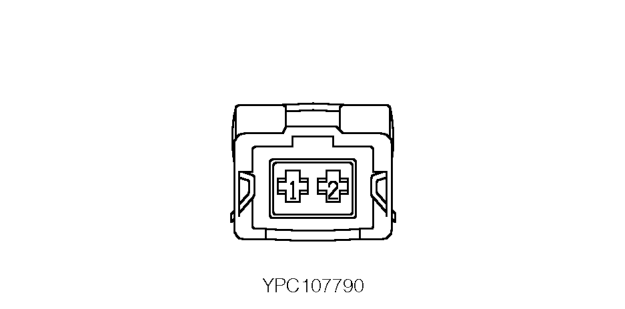

C0884 Sensor - Ambient air temperature › Colour: BLACK Gender: Female
ConnectorsColour: BLACK Gender: Female
Diagram
Cav 1Col KBCct ALL
2SWALL

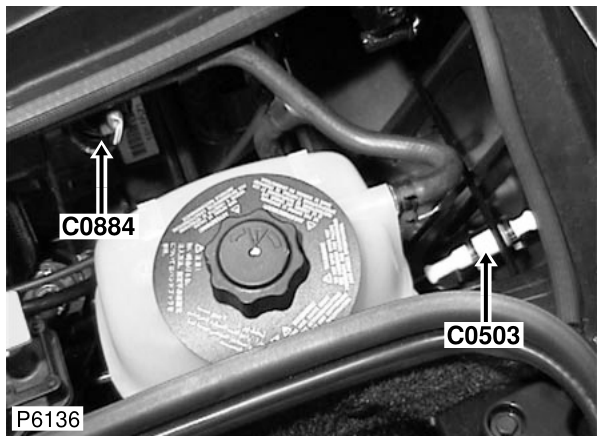

Description: Sensor - Ambient air temperature Location: RH side of engine compartment

Description: Sensor - Ambient air temperature Location: RH side of engine compartment

Colour: BLACK Gender: Female
