Automatic gearbox - EM-CVTSteptronic EM-CVT component location

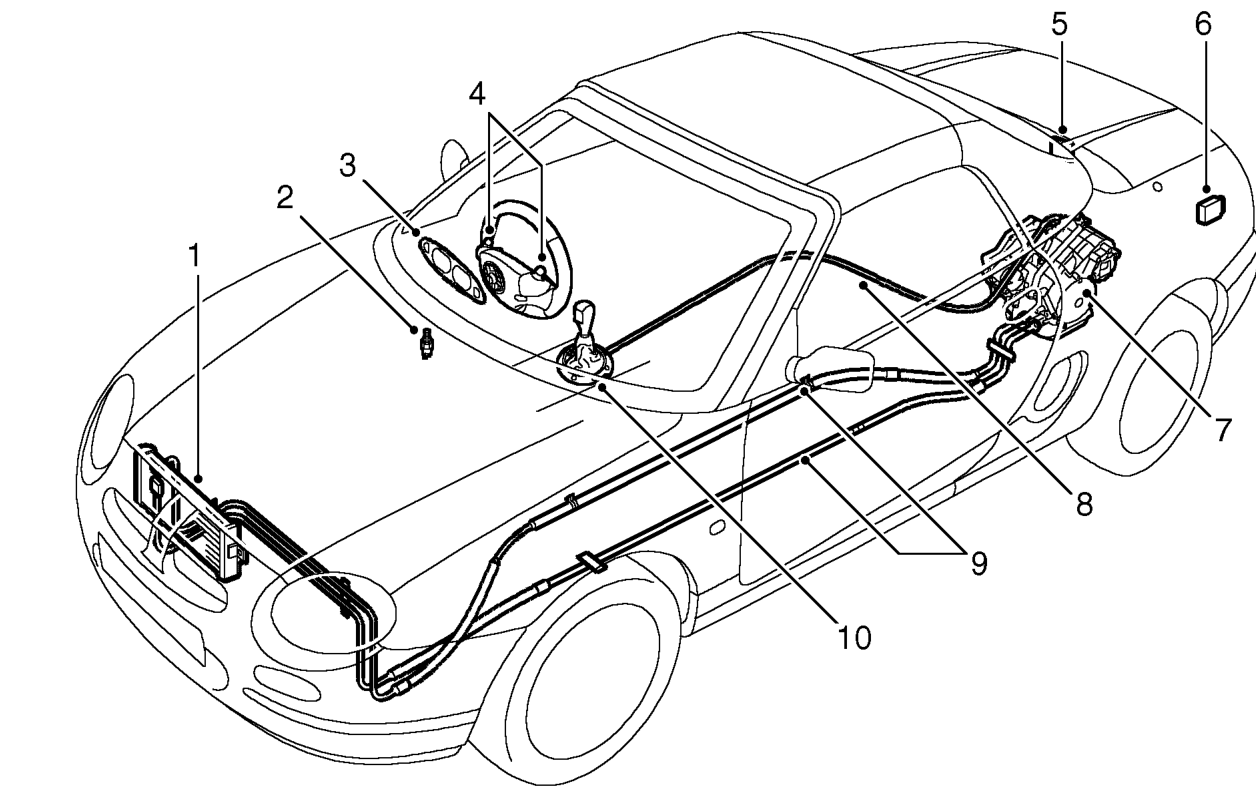

STEPTRONIC EM-CVT COMPONENT LOCATION

1. Fluid cooler
2. Brake switch
3. Instrument pack
4. Steering wheel switches
5. Engine Control Module (ECM)
6. Gearbox Interface Unit (GIU)
7. Steptronic EM-CVT gearbox
8. Selector cable
9. Fluid cooler feed/return pipes
10. Gear selector lever

11 Transmission
