Steptronic EM-CVT control diagram (Automatic gearbox - EM-CVT)

Make

MG

Model

MGF Factory Workshop Manual

Year

1995–2000

Section

Description and operation › Steptronic EM-CVT control diagram

Automatic gearbox - EM-CVTSteptronic EM-CVT control diagram

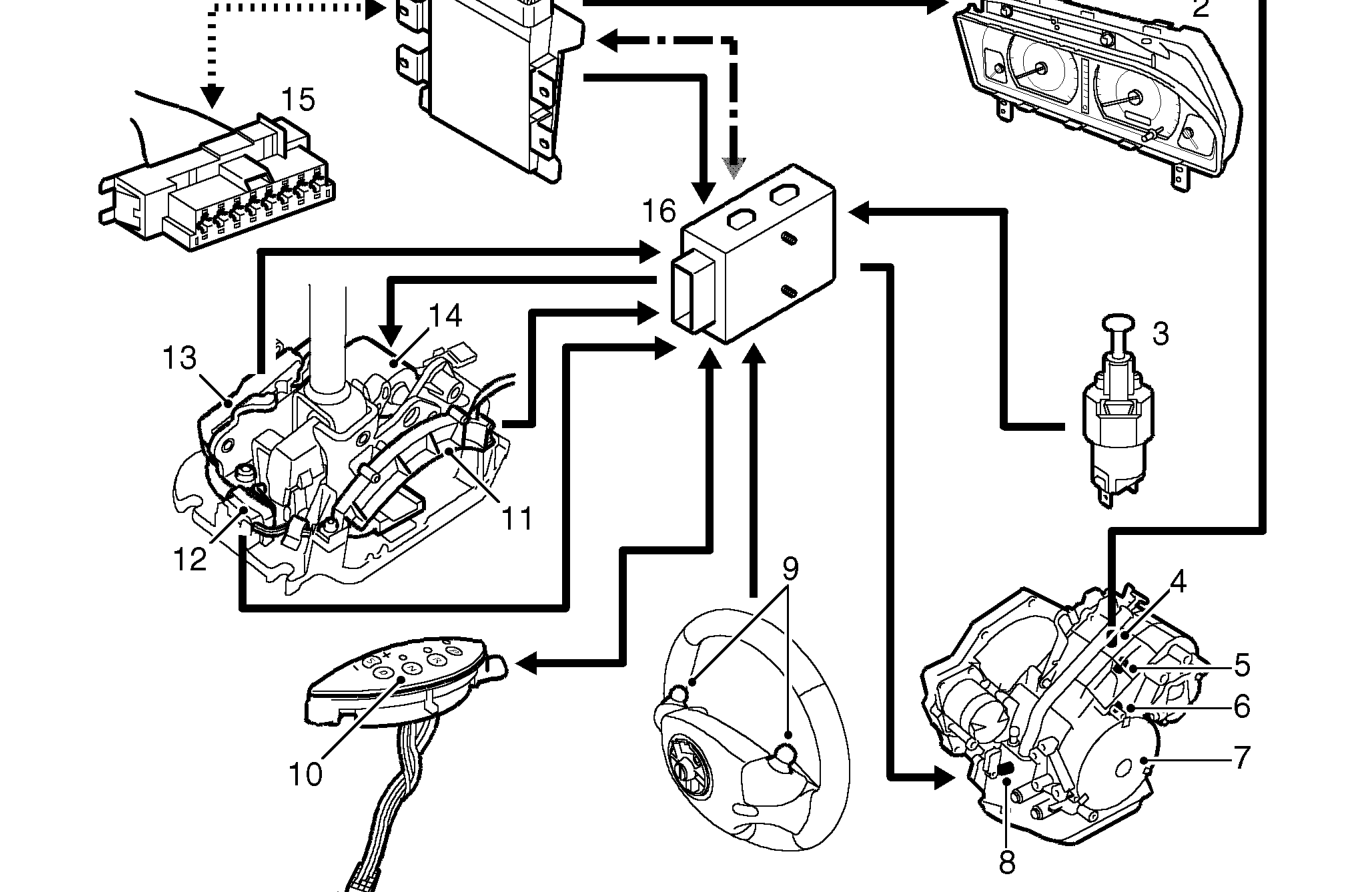

STEPTRONIC EM-CVT CONTROL DIAGRAM

A= Hardwired; B= Serial link; J= Diagnostic ISO9141 K Line

1. Engine Control Module (ECM)
2. Instrument pack
3. Brake switch
4. Road speed transducer
5. Gearbox differential speed sensor
6. Park/Neutral switch
7. EM-CVT Steptronic gearbox
8. Ratio control motor
9. Steering wheel switches
10. P R N D S LED module
11. P R N D switch
12. Manual/Sport switch
13. Sport +/- switch
14. Shift lock solenoid (if fitted)
15. Diagnostic socket
16. Gearbox Interface Unit (GIU)

11 Transmission
