HANDBRAKE - ADJUST

Service repair no - 70.35.10

Adjust

  1. Raise rear of vehicle.

WARNING: Support on safety stands.

  1. Remove front console storage bin.

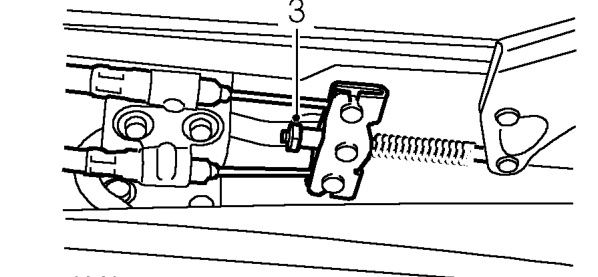

Handbrake - adjust – Remove front console storage bin.

NOTE: Depress brake pedal several times to ensure that automatic adjustment clearance is taken up.

  1. Tighten adjuster nut1/2 turn and check caliper lever clearance.

CAUTION: Do not depress brake pedal until caliper adjustment clearance is correct.

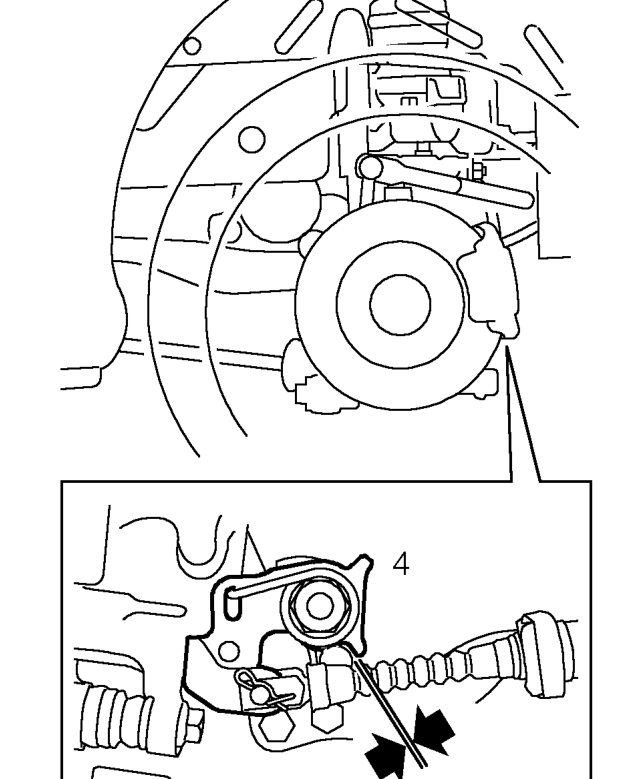

Handbrake - adjust – Tighten adjuster nut1/2 turn and check caliper lever clearance.
  1. Repeat adjustment until caliper lever clearances are between 1 & 2 mm each side.
  2. Fit storage bin.
  3. Remove stand(s) and lower vehicle.
