Rear brake disc - check (Brakes)

REAR BRAKE DISC - CHECK

Service repair no - 70.10.35

1. Raise rear of vehicle.

WARNING: Support on safety stands.

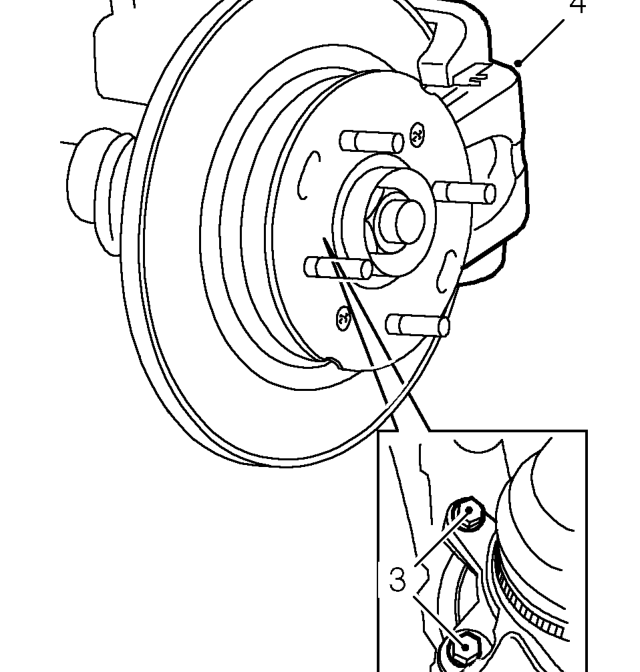

2. Remove road wheel(s).

3. Remove 2 bolts securing brake caliper to hub.
4. Release caliper from disc. Tie caliper clear of brake disc, ensuring that weight of caliper is supported.

CAUTION: Do not allow caliper to hang on brake hose as weight of caliper may damage hose.

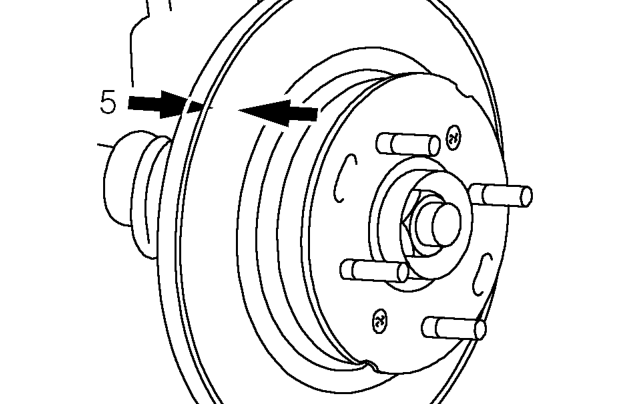

5. At 4 points around disc, measure disc thickness using a micrometer; renew disc if less than service limit or if maximum variation is exceeded: Disc thickness, NEW = 10.00 mm. Service limit = 8.00 mm. Thickness variation, maximum = 0.015 mm.

NOTE: Maximum variation limit: Both brake discs must be renewed at the same time, unless one disc requires changing at 1000 mile service. Only in this situation is renewal of one disc permissible.
