ClutchClutch components

CLUTCH COMPONENTS

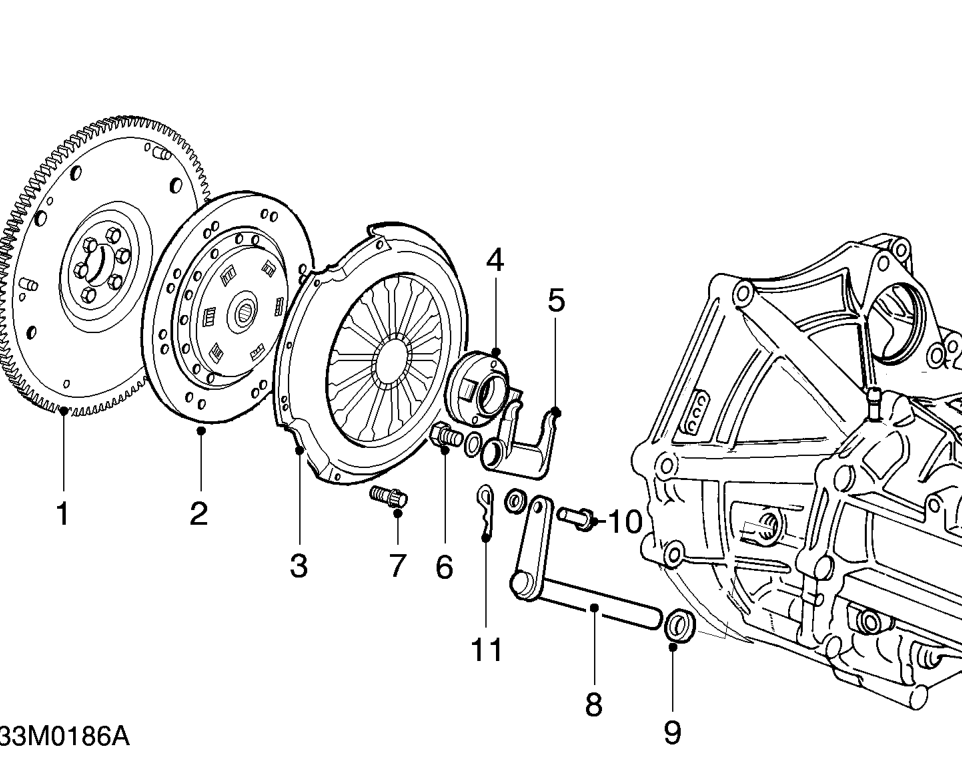

Clutch components
  1. Flywheel
  2. Clutch plate
  3. Pressure plate
  4. Release bearing
  5. Release bearing fork
  6. Fork retaining bolt
  7. Pressure plate bolts
  8. Clutch release shaft
  9. Clutch release shaft, washer
  10. Clevis pin
  11. ’R’ clip
