MG MGF Factory Workshop Manual (1995-2000)09 · Clutch
09 · Transmission

Slave cylinder components (Clutch)

Make
MG
Model
MGF Factory Workshop Manual
Year
1995–2000
Section
Description and operation › Slave cylinder components
ClutchSlave cylinder components

SLAVE CYLINDER COMPONENTS

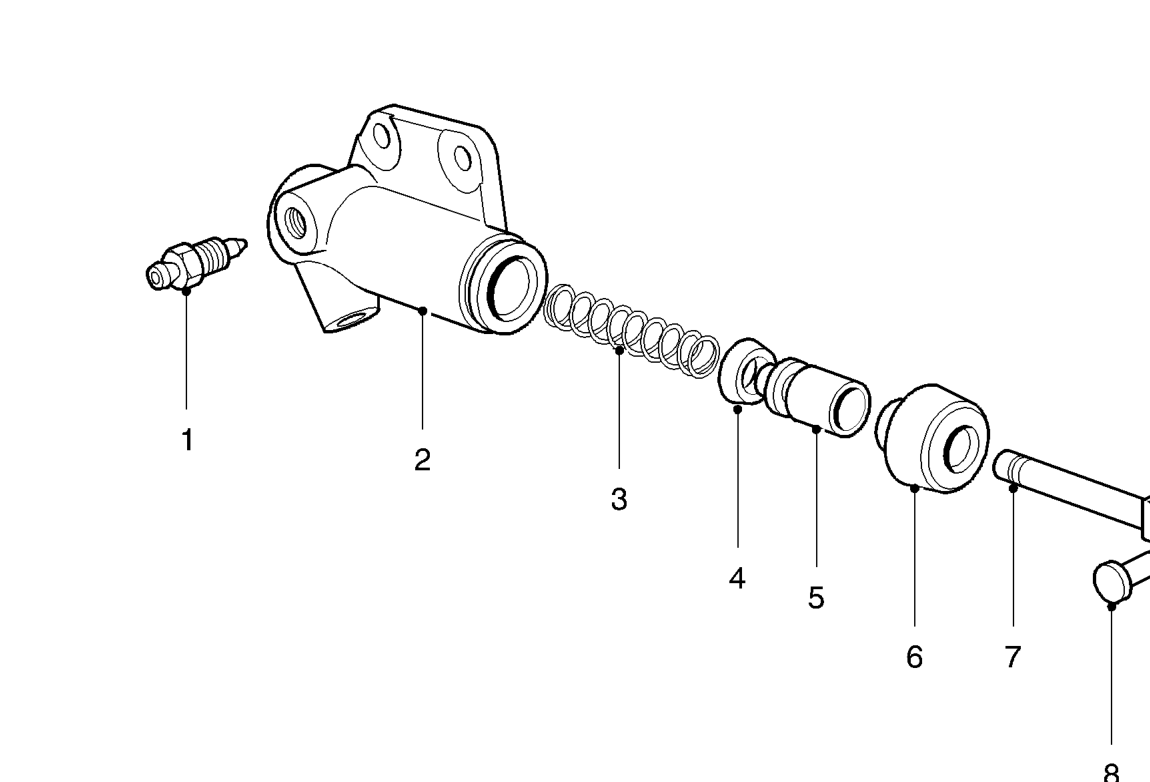

Slave cylinder components
  1. Bleed screw
  2. Slave cylinder
  3. Return spring
  4. Seal
  5. Piston assembly
  6. Dust cover
  7. Push-rod
  8. Clevis pin
  9. R-clip
