Clutch slave cylinder

CLUTCH SLAVE CYLINDER

Service repair no - 33.35.01

Remove

1. Remove engine cover. See ENGINE, Repairs.

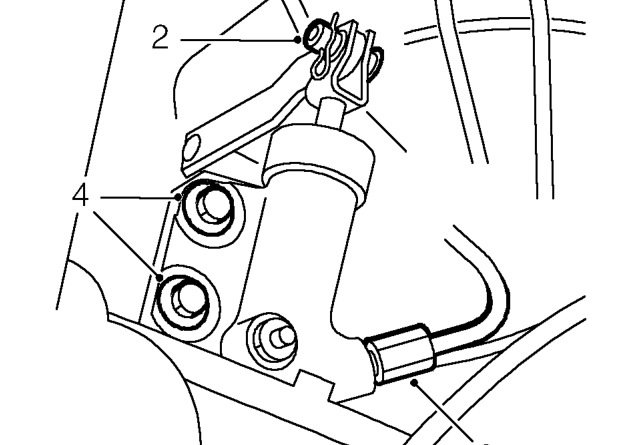

2. Remove clevis pin from slave cylinder.

CAUTION: Do not allow brake fluid to contact paint finished surfaces as paint may be damaged. If spilled, remove fluid and clean area with clean warm water.

3. Release pipe union from slave cylinder and position aside.

CAUTION: Plug the connections.

4. Remove 2 bolts securing slave cylinder to bracket and remove slave cylinder.

Refit

1. Fit slave cylinder and tighten bolts to 25 Nm.
2. Position pipe and tighten union to 18 Nm.
3. Position cylinder rod to lever and secure with clevis pin.
4. Bleed clutch. See Adjustments.
5. Fit engine cover. See ENGINE, Repairs.

DAMPER - CLUTCH - VVC

Service repair no - 33.15.05

Remove

1. Remove underbonnet closing panel, See BODY, Exterior fittings.

CAUTION: Do not allow brake fluid to contact paint finished surfaces as paint may be damaged. If spilled, remove fluid and clean area with clean warm water.

2. Place container underneath clutch damper to collect fluid spillage.

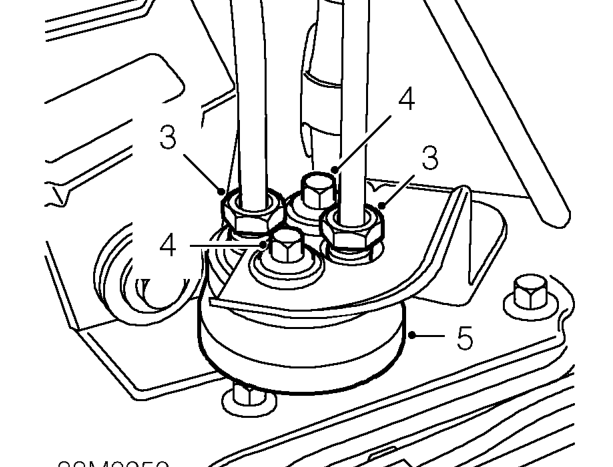

3. Release 2 clutch pipe unions from clutch damper.
4. Remove 2 bolts securing clutch damper to bracket.
5. Collect clutch damper.

CAUTION: Plug the connections.
