DRIVE SHAFT COMPONENTS

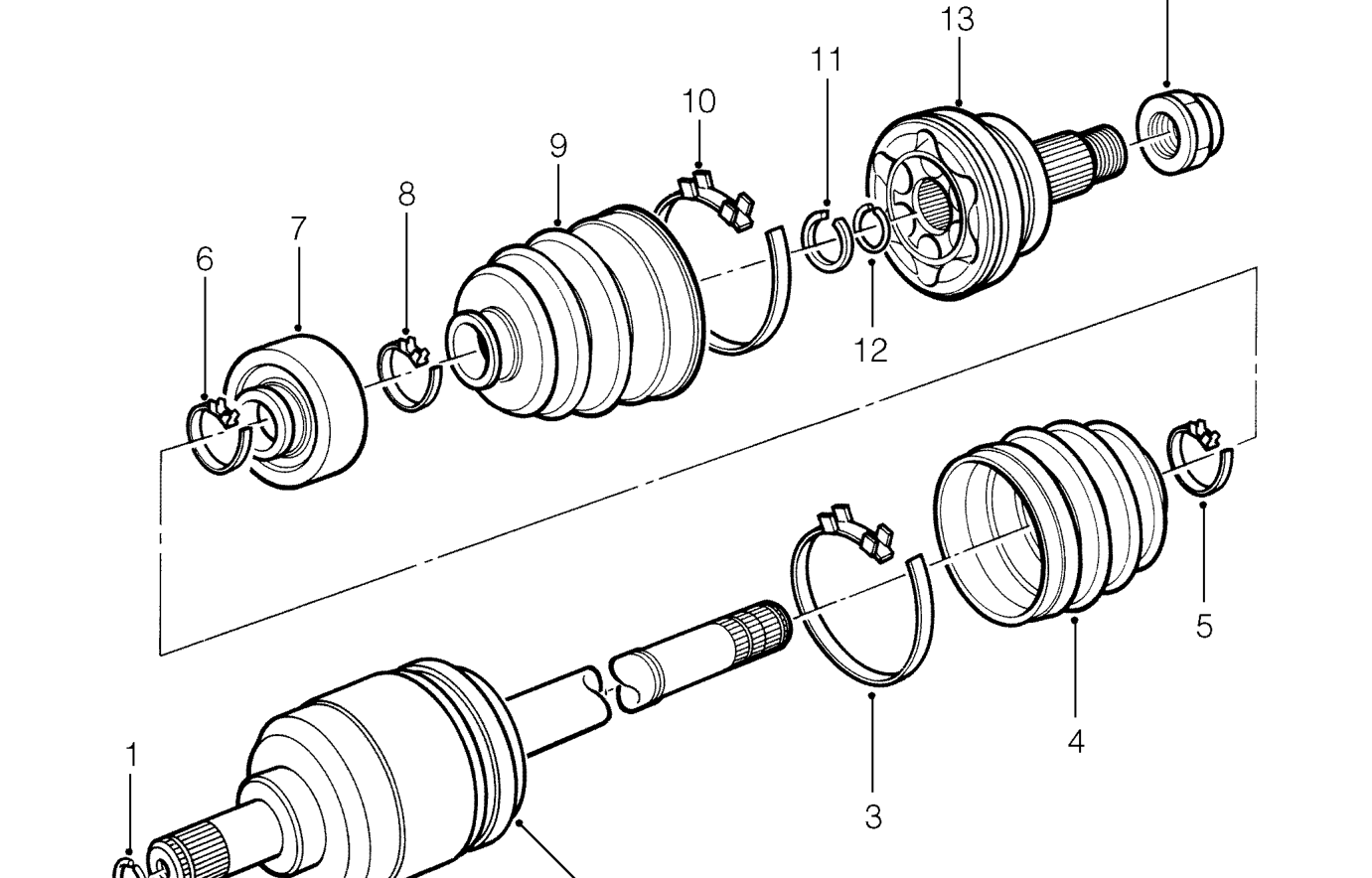

Drive shaft components
  1. Circlip
  2. Inner joint and shaft
  3. Large clip - inner joint gaiter
  4. Gaiter
  5. Small clip - inner joint gaiter
  6. Damper clip - RH shaft only
  7. Dynamic damper - RH shaft only
  8. Small clip - outer joint gaiter
  9. Gaiter
  10. Large clip - outer joint gaiter
  11. Stopper ring
  12. Circlip
  13. Outer joint
  14. Drive shaft nut
