Drive shafts (Operation): Description and operation
- Make
- MG
- Model
- MGF Factory Workshop Manual
- Year
- 1995–2000
- Section
- Description and operation › Operation
Drive shaftsOperation

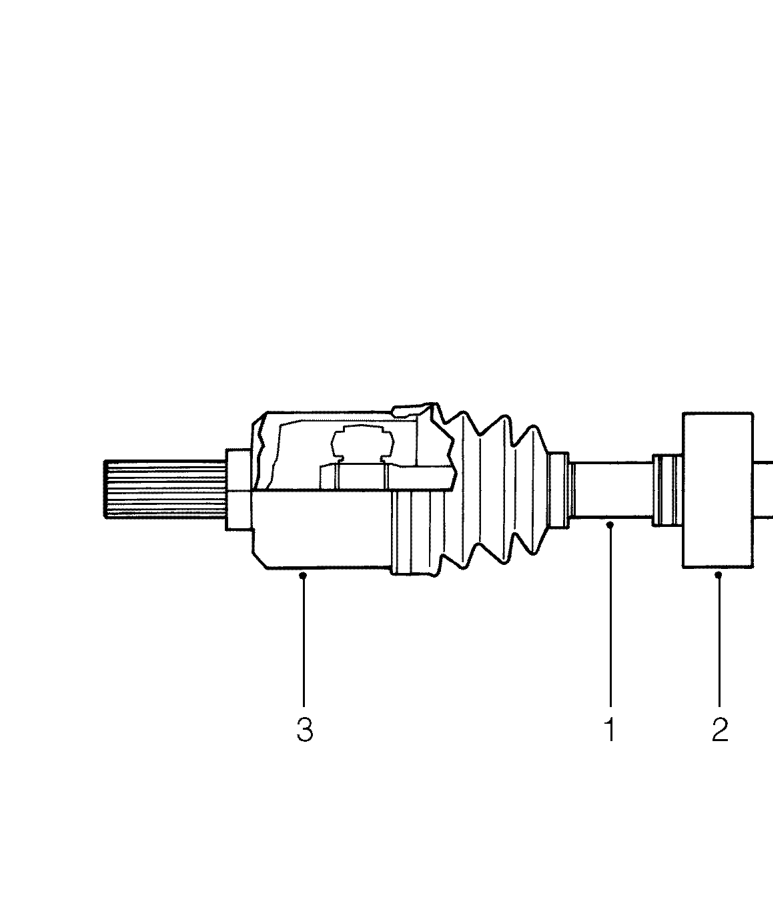

OPERATION
- Drive shaft
- Dynamic damper
- Inner joint
- Outer joint
Drive from the power unit is transmitted to the rear wheels by the drive shafts. Due to the RH drive shaft being longer than the LH drive shaft, a dynamic damper is fitted to reduce harmonic vibration.
The inner joint is of the tripode type with spherical bushing to reduce sliding resistance; it cannot be serviced separate from the shaft. The outer joint is of the ball and socket type. The joints are sealed and pre-packed with grease.
